Sinusoidal functions & graphs

What are the key features of sinusoidal graphs?

  • A sinusoidal graph is of the form

    • space y equals a sin left parenthesis b open parentheses x minus c close parentheses right parenthesis plus d

    • space y equals a cos left parenthesis b open parentheses x minus c close parentheses right parenthesis plus d

  • The y-intercept is at the point where x equals 0

    • left parenthesis 0 comma space minus a sin left parenthesis b c right parenthesis space plus space d right parenthesis for space y equals a sin left parenthesis b open parentheses x minus c close parentheses right parenthesis plus d

    • (0 comma space a cos left parenthesis b c right parenthesis space plus space d right parenthesis for space y equals a cos left parenthesis b open parentheses x minus c close parentheses right parenthesis plus d

  • The period of the graph is the length of the interval of a full cycle

    • This is fraction numerator 360 degree over denominator b end fraction (in degrees) or fraction numerator 2 pi over denominator b end fraction (in radians)

  • The maximum value is y space equals space a space plus space d

    • You can find this by letting sin open parentheses b open parentheses x minus c close parentheses close parentheses equals 1 or cos open parentheses b open parentheses x minus c close parentheses close parentheses equals 1

  • The minimum value isspace y space equals space minus a space plus space d

    • You can find this by letting sin open parentheses b open parentheses x minus c close parentheses close parentheses equals negative 1 or cos open parentheses b open parentheses x minus c close parentheses close parentheses equals negative 1

  • The principal axis is the horizontal line halfway between the maximum and minimum values

    • This is y space equals space d

  • The amplitude is the vertical distance from the principal axis to the maximum value

    • This is the value of a

  • The phase shift is the horizontal distance from its usual position

    • This is the value of c

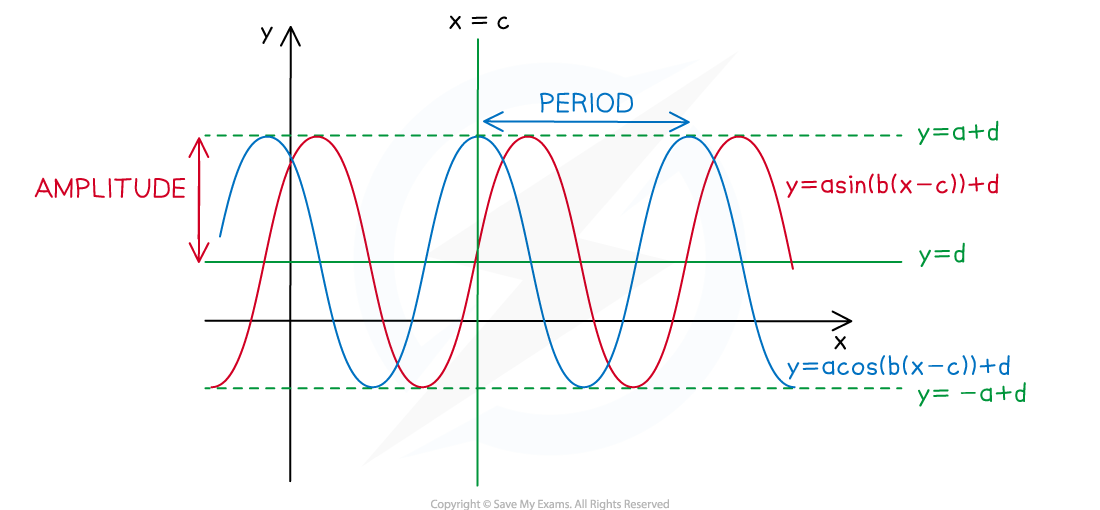

Graph depicting sine and cosine functions. Amplitude and period are marked. Equations: y=asin(b(x-c))+d in red, y=acos(b(x-c))+d in blue.
Example of sinusoidal graphs and their key features

Examiner Tips and Tricks

Make sure your angle setting is in the correct mode (degrees or radians) at the start of a question involving sinusoidal functions.

Worked Example

a) Sketch the graph space y equals 3 sin left parenthesis 2 open parentheses x degree minus 15 degree close parentheses right parenthesis plus 1 for the values space 0 less or equal than x less or equal than 360.

2-2-3-ib-ai-hl-sinusoidal-graphs-a-we-solution

b) State the equation of the principal axis of the curve.

2-2-3-ib-ai-sl-sinusoidal-graphs-b-we-solution

c) State the period and amplitude.

2-2-3-ib-ai-sl-sinusoidal-graphs-c-we-solution
