De Morgan's Law
Complex expressions can be made simpler using the rules of Boolean algebra
This is a more powerful simplification method than Karnaugh maps and can simplify expressions that Karnaugh maps cannot
There are various different rules that you need to learn and that can then be applied to certain expressions to simplify them
Combining these rules can mean that complex expressions can be reduced to much simpler ones
General rules
General AND rules
X AND 0 = 0
X AND 1 = X
X AND A = X
NOT X AND X = 0
Note, the value ox X is unknown and it is used as a placeholder. Therefore X AND 1 = X means that the output will be whatever the value of X is.
General OR rules
X OR 0 = X
X OR 1 = 1
X OR A = X
NOT X OR X = 1
DeMorgan's Law
This provides a strategy for simplifying expressions that include a negation of a conjunction or disjunction (simplifying by inverting all variable)

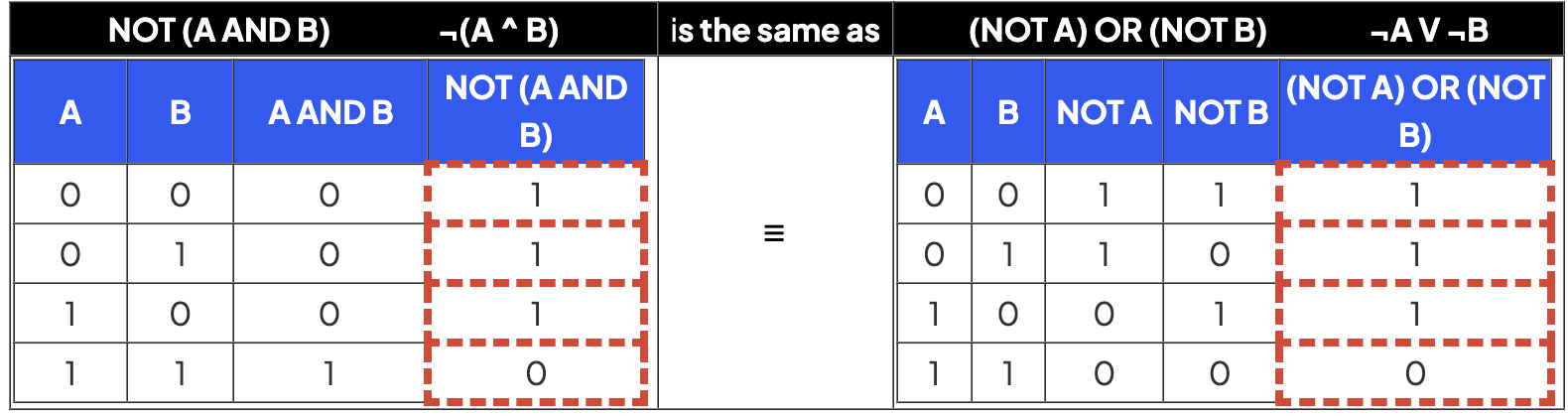

NOT(A AND B) is the same as (NOT A) OR (NOT B)
Step 1
Change AND to OR (or vice versa) - ¬(A V B)
Step 2
NOT the terms either side of the operator - ¬(¬A V ¬B)
Step 3
NOT everything that has changed - ¬¬(¬A V ¬B)
Step 4
Get rid of any double negation - (¬A V ¬B)
Step 5
Remove any unnecessary brackets - ¬A V ¬B
NOT(A OR B) is the same as (NOT A) AND (NOT B)
Step 1
Change AND to OR (or vice versa) - ¬(A ^ B)
Step 2
NOT the terms either side of the operator - ¬(¬A ^ ¬B)
Step 3
NOT everything that has changed - ¬¬(¬A ^ ¬B)
Step 4
Get rid of any double negation - (¬A ^ ¬B)
Step 5
Remove any unnecessary brackets - ¬A ^ ¬B
Simplifying using this law allows the use of only NAND or NOR gates which makes building microprocessors much easier (i.e. Flash drives)
Distribution
Distributive Law
This explains how AND and OR interact with each other
This is a bit like factorising in normal maths
A AND (B OR C) is the same as (A AND B) OR (A AND C)
A OR (B AND C) is the same as (A OR B) AND (A OR C
Real-life example
"You can pick one subject from group A and either one from group B or group C"
is the same as
"You can pick one subject from group A and one from group B or one subject from group A and one from group C"
Association
Associative Law
This explains how variables associate in expressions of more than two variables
Allows us to remove brackets and regroup variables
(A AND B) AND C is the same as A AND (B AND C) is the same as A AND B AND C
(A OR B) OR C is the same as A OR (B OR C) is the same as A OR B OR C
Real-life example
"Zarmeen and her friends, Zahra and Ella have been chosen to represent the school"
is the same as
"Zarmeen and Zahra, and their friend Ella have been chosen to represent the school"
is the same as
"Zarmeen, Zahra and Ella have been chosen to the represent the school"
Commutation
Commutative Law
States that the order of the variables does not change the truth value of the expression
A AND B is the same as B AND A
A OR B is the same as B OR A
Real-life example
"Fynn and George won gold medals"
is the same as
George and Fynn won gold medals"
Double Negation
Double Negation Law
States that the double negation of a variable results in the original variable
NOT(NOT(A)) = A
Real-life example
"I don't not want to visit the castle"
is the same as
"I do want to visit the castle"
Worked Example
SIMPLIFYING EXPRESSION EXAMPLE
Simplify (A v B) ^ (A v C)
How to answer this question:
Step one - Distribution
This is a bit like multiplying out the brackets in an expression in regular maths. Think of OR being like ADD and AND being like MULTIPLY.
(A v B) ^ (A v C)
becomes
(A ^ A) v (B ^ A) v (A ^ C) v (B ^ C)
Step two - General rules
Since (A ^ A) is just A we can replace this term in the expression with a simpler one.
(A ^ A) v (B ^ A) v (A ^ C) v (B ^ C)
becomes
A v (B ^ A) v (A ^ C) v (B ^ C)
Step three - Commutation
This means the order of the logical operators does not matter so can change (B ^ A) into (A ^ B).
A v (B ^ A) v (A ^ C) v (B ^ C)
becomes
A v (A ^ B) v (A ^ C) v (B ^ C)
Step four - Absorption
This rule says that A AND (A OR B) = A.
A v (A ^ B) v (A ^ C) v (B ^ C)
becomes
A v (A ^ C) v (B ^ C)
Step five - Another absorption
Again this rule says that A AND (A OR C) = A so
A v (A ^ C) v (B ^ C)
becomes
A v (B ^ C)
Example answer that gets full marks:
A v (B ^ C)
