Hooke's Law (Edexcel A Level Further Maths): Revision Note

Introduction to Hooke's Law

What is Hooke's Law?

• Up to now, strings have been modelled as inextensible

  • they cannot stretch (inelastic)

  • we assume that the tension measured at any point along the string is the same constant value

• Things that stretch (or compress, e.g. springs) are called elastic

• Imagine two elastic strings held taut and at rest, but with one stretched further than the other

  • measuring the tension at different points along one string gives the same value,

  • but that "value" will be higher for the more stretched string than for the less stretched string

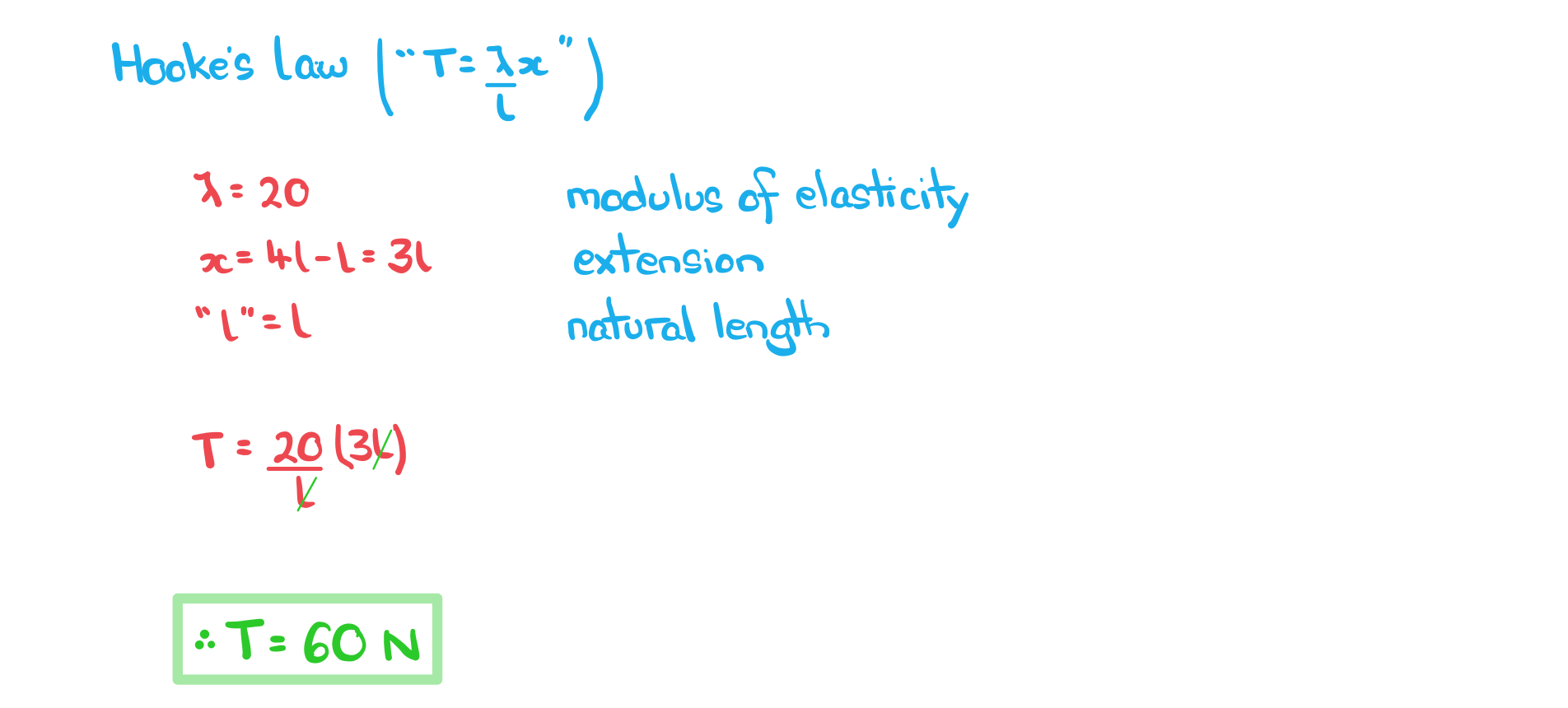

• Hooke's Law tells us that the value of tension, N, depends on how far it's been stretched (the extension, metres) beyond its natural (unstretched) length ( metres)

  • The law is

  • where  is the modulus of elasticity, with units of Newtons,

    • it measures the stiffness of the material the string (or spring) is made from,

    • the higher  is, the stiffer the string / spring is

• Springs can be compressed but elastic strings can't (they'd go slack)

  • Hooke's Law works for compression of springs too

  • Instead of measuring extension, measures the length of compression (from its natural length)

    • just make sure any tension arrows reverse direction to be compression (thrust) arrows!

Hooke's Law - Equilibrium

How do I use Hooke's Law for particles at rest under gravity?

• Imagine a particle of mass kg attached to the end of a light elastic string of natural length  metres, with modulus of elasticity N

• The other end of the string is attached to a ceiling at the point O and the particle hangs at rest at the point E, vertically beneath O

• The total length of the string, OE, will be greater than its natural length, OA (where A is  metres from O)

  • The weight of the particle has stretched the string downwards and the system is now in equilibrium

  • The equilibrium extension is often labelled as metres

    • The total length is therefore metres

• Two equations can be formed and solved simultaneously to find

  • Applying Newton's 2nd Law (F=ma) upwards at E gives the first equation:

    •

    • You could also resolve downwards giving the same relationship

  • Applying Hooke's Law gives the second equation:

    •

How do I use Hooke's Law for particles resting on a smooth inclined plane?

• Imagine a particle of mass kg attached to the end of a light elastic string of natural length  metres, with modulus of elasticity N

• The other end of the string is attached to the top of a smooth inclined plane at the point O and the particle lies at rest at the point E on the slope

  • The equilibrium extension is metres

  • The angle of inclination of the plane is

• Again, two equations can be formed, which can be solved simultaneously to find

  • Newton's 2nd Law up the slope at E gives the first equation:

    •

  • Hooke's Law gives the second equation:

    •

• Compression questions can have a spring attached to the bottom of the inclined plane

  • In this case, it rests on the slope at the point E, less than its natural length metres from the bottom

  • Use to measure the equilibrium compression

  •  now goes up the slope (thrust)

What if the particle rests on a rough inclined plane?

• A rough slope has a range of points on it at which the particle would remain in equilibrium

• With the setup above, the furthest possible equilibrium position from O is on the slope where the string has extended so much that the particle is on the point of sliding back up the slope

  • This still counts as equilibrium (as it's not actually moved yet)

  • Friction has reached its limiting value, (as it's on the point of moving)

  • Friction acts down the slope (stopping it from actually sliding up)

• Provided the string doesn't go slack (an extension of zero), a shortest possible equilibrium position from O exists on the slope where the string is extended only a small amount from its natural length and the particle is on the point of sliding down the slope

  • Again, this counts as equilibrium and friction reaches its limiting value

  • Friction now acts up the slope (stopping it from actually sliding down)

• In either case, four equations can be solved to find

  • The first is from Newton's 2nd Law parallel to the slope

    • being careful to draw friction in the correct direction

    •

  • The second is from Newton's 2nd Law perpendicular to the slope

    • This gives you the reaction

    •

  • The third is from Hooke's Law

    •

  • The fourth is from friction reaching it's limiting value

    •

• If the particle is in equilibrium at a point between the two extremes above, friction is no longer "limiting"

  • You cannot use  (as )

• If, instead, the string is replaced by a spring, springs can't go slack so its shortest equilibrium position from O may, in fact, be when it's under compression

  • i.e. when the particle is less than the natural length, , from O

Hooke's Law - Dynamics

How do I find acceleration using Hooke's Law?

• You must first understand Hooke's Law in equilibrium before looking at moving (dynamical) particles

• Imagine a particle of mass kg attached to the end of a light elastic string of natural length  metres, with modulus of elasticity N

• The other end of the string is attached to a ceiling at the point O and the particle hangs at rest at the point E, vertically beneath O

  • The total length of the string is  metres, where  is the equilibrium extension

  • It helps to use as the equilibrium tension (to avoid confusing it with a different tension, , below)

  • can be found by drawing a force diagram in equilibrium and solving two equations

    • Newton's 2nd Law,

    • Hooke's Law,

• Now imagine pulling the particle down to the point B with extension where , under tension N, then letting go

  • the particle is beyond its equilibrium point, so will want to accelerate back towards E

    • draw an acceleration arrow to show this initial acceleration

    • the initial acceleration is not zero (but the initial speed is, as it's released from rest)

• The two equations to find the initial acceleration are:

  • from Newton's 2nd Law upwards

    • here, the order matters (resolve upwards, as it's moving in that direction)

  • from Hooke's Law

• After that initial release, the particle oscillates about the equilibrium position, E (not about its natural length)

  • the maximum speed is when it passes through E

    • at this point, it's acceleration is zero

  • Springs lead to full oscillations (assuming it doesn't hit the ceiling), but strings may become slack if the initial extension is very large

    • in particular, they become slack when the extension is zero (at its natural length)

    • after this point, the particle moves freely like a projectile under gravity

• The same theory can be applied to strings and springs on smooth or rough inclined planes
