Exam code: 7036

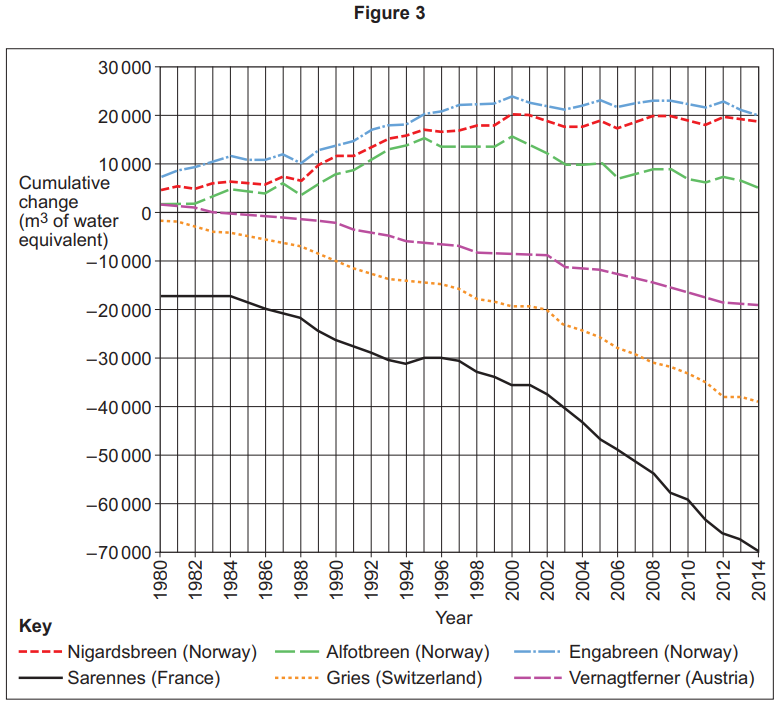

Figure 3 shows information about the cumulative change in glacial mass of six European glaciers compared to 1945 levels.
The change in ice mass is measured in cubic metres (m3) of water equivalent. On the y-axis ‘0’ represents glacial mass in 1945.
Analyse the information shown in Figure 3.
Was this exam question helpful?
Which of the following outlines a positive feedback in cold environments?
Atmosphere warms up format('truetype')%3Bfont-weight%3Anormal%3Bfont-style%3Anormal%3B%7D%3C%2Fstyle%3E%3C%2Fdefs%3E%3Ctext%20font-family%3D%22math12bba9f4124283edd644799e0ce%22%20font-size%3D%2216%22%20text-anchor%3D%22middle%22%20x%3D%2210.5%22%20y%3D%2216%22%3E%26%23x2192%3B%3C%2Ftext%3E%3C%2Fsvg%3E){kind=small}
more vegetation grows in warmer environments CO2 removed from atmosphere reduces warming.
Atmosphere warms sea ice melts more sunlight allows phytoplankton to photosynthesise more in oceans CO2 removed from atmosphere limits atmospheric warming.
Sea ice melts darker surfaces exposed less solar radiation reflected more insolation absorbed temperatures rise more melting.
Temperatures rise increased evaporation of water increased cloud formation more precipitation falls as snow snow reflects incoming solar radiation less warming.
Was this exam question helpful?
In systems in physical geography, which of the following correctly defines negative feedback?
Changes in a system amplify, or speed up, the impacts of an initial action.
Changes in a system decrease, or slow down, the impacts of an initial action.
When there is a balance between the inputs and outputs of a system.
When there is a transfer of energy beyond the boundary of the system.
Was this exam question helpful?

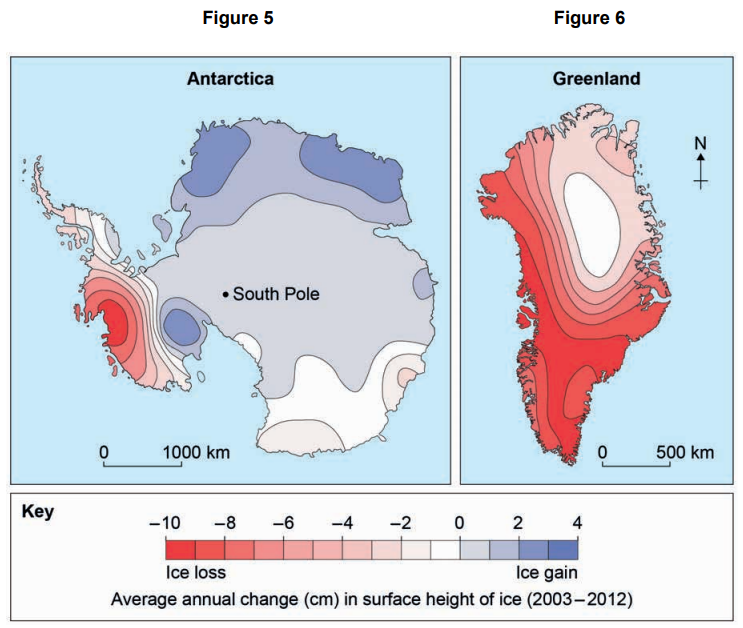

Figure 5 and Figure 6 provide information about changes to the amount of ice in Antarctica and Greenland.
Analyse the data shown in Figure 5 and Figure 6.
Was this exam question helpful?
