Introduction to Abstract Data Types (ADT) (Cambridge (CIE) AS Computer Science): Exam Questions

The implementation of a linked list uses an integer variable and a 1D array List of type Node.

Record type Node is declared in pseudocode as follows:

TYPE Node
DECLARE Data : STRING
DECLARE Pointer : INTEGER
ENDTYPE

The array List is declared in pseudocode as follows:

DECLARE List : ARRAY[1:200] OF Node

The linked list will operate as follows:

• Integer variable HeadPointer will store the array index for the first node in the linked list.

• The Pointer field of a node contains the index value of the next array element (the next node) in the linked list.

• The value 0 is used as a null pointer.

State why the value 0 has been selected as the null pointer.

The array List will be initialised so that each node points to the following node. The last node will contain a null pointer.

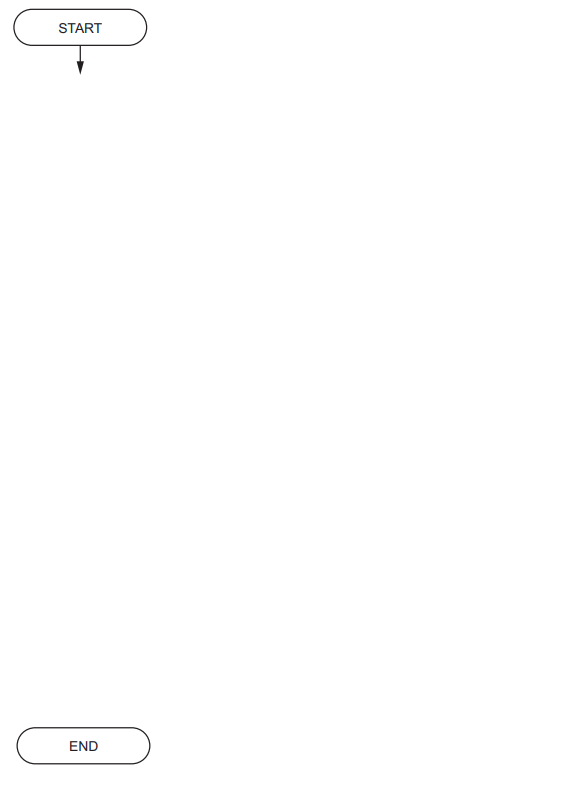

Complete the program flowchart to represent the algorithm for this operation.

An algorithm outputs the Data field from all nodes in the array List. The order the Data is output should be the same order it is stored in the linked list.

Describe the algorithm in four steps.

Do not use pseudocode statements in your answer.

Step 1 ......................................................................................................................

Step 2 .....................................................................................................................

Step 3 .....................................................................................................................

Step 4 .....................................................................................................................

The diagram shows an Abstract Data Type (ADT) representation of a linked list after data items have been added.

• PS is the start pointer.

• PF is the free list pointer.

• Labels Df, Dc, Db and Dy represent the data items of nodes in the list.

• Labels Fg, Fh, Fm and Fw represent the data items of nodes in the free list.

• The symbol Ø represents a null pointer.

Describe the linked list immediately after initialisation, before any data items are added.

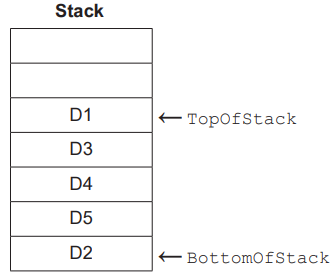

The diagram represents an Abstract Data Type (ADT).

The operation of this stack may be summarised as follows:

• The TopOfStack pointer points to the last item added to the stack.

• The BottomOfStack pointer points to the first item on the stack.

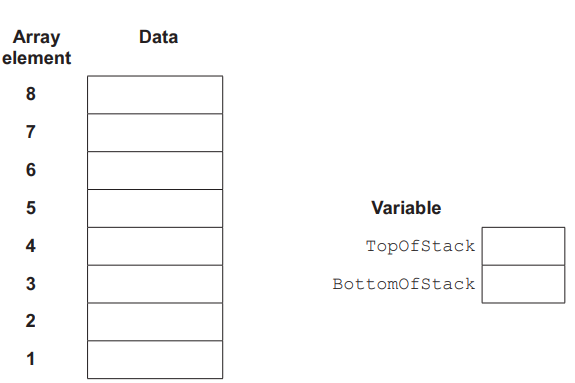

The stack is implemented using two variables and a 1D array of 8 elements as shown.

The variables are used to reference individual elements of the array, in such a way that:

• the array is filled from the lowest indexed element towards the highest

• all the elements of the array are available for the stack.

Complete the diagram to represent the state of the stack as shown above.

A function Push() will add a value onto the stack by manipulating the array and variables in part (a).

Before adding a value onto the stack, the algorithm will check that space is available.

If the value is added to the stack, the function will return TRUE, otherwise it will return FALSE.

The algorithm is expressed in five steps.

Complete the steps.

1. If ........................................................ then return FALSE

2. Otherwise .......................................... TopOfStack

3. Use TopOfStack as an ................................... to the array.

4. Set the element at this ...................................... to the .............................. being added.

5. Return .............................. .

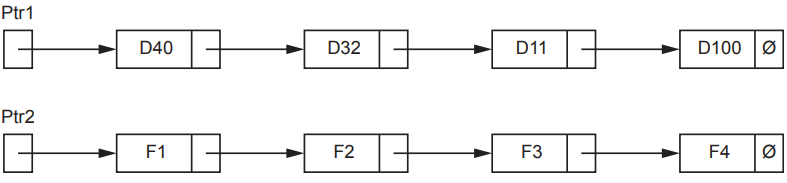

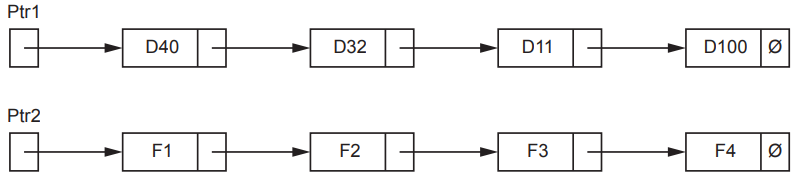

The diagram represents a linked list Abstract Data Type (ADT).

• Ptr1 is the start pointer. Ptr2 is the free list pointer.

• Labels D40, D32, D11 and D100 represent the data items of nodes in the list.

• Labels F1, F2, F3 and F4 represent the data items of nodes in the free list.

• The symbol Ø represents a null pointer.

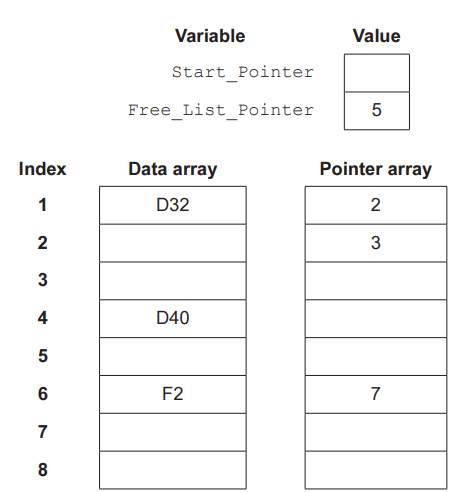

The linked list is implemented using two variables and two 1D arrays as shown.

The pointer variables and the elements of the Pointer array store the indices (index numbers) of elements in the Data array.

Complete the diagram to show how the linked list as shown above may be represented using the variables and arrays.

The original linked list is to be modified. A new node D6 is inserted between nodes D32 and D11.

The algorithm required is expressed in four steps as shown.

Complete the steps.

1. Assign the data item .................................. to .................................. .

2. Set the .................................. of this node to point to .................................. .

3. Set Ptr2 to point to .................................. .

4. Set pointer of .................................. to point to .................................. .

The program contains a module GetFile() which receives text files sent from another computer.

Lines from the file are sent one at a time. Each message contains one line and ProcessMsg() from part (b) adds each message as it is received onto stack 1.

Module GetFile() removes messages from stack 1 and writes the data to a text file.

There is a problem. Under certain circumstances, the received file does not appear as expected.

Assume that while a file is being received ProcessMsg() receives only messages containing lines from the file.

(i) Describe the circumstances and explain the problem.

Circumstances ........................................................................................................

Explanation .............................................................................................................

[3]

(ii) Suggest a more appropriate Abstract Data Type that could be used to store the messages that would not have the same problem.

[1]

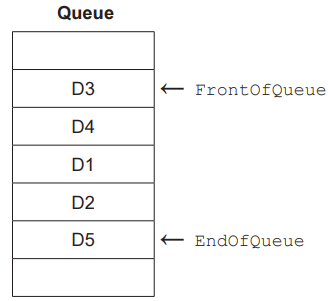

The diagram represents a queue Abstract Data Type (ADT).

The organisation of this queue may be summarised as follows:

• The FrontOfQueue pointer points to the next data item to be removed.

• The EndOfQueue pointer points to the last data item added.

The queue is implemented using three variables and a 1D array of eight elements as shown. The variable NumItems stores the number of items in the queue.

The pointer variables store indices (index numbers) of the array.

Complete the diagram to represent the state of the queue as shown above.

A module AddTo() will add a value to the queue by manipulating the array and variables in part (a).

The queue implementation is circular. When pointers reach the end of the queue, they will ‘wrap around’ to the beginning.

Before a value can be added to the queue, it is necessary to check the queue is not full.

The algorithm to add a value to the queue is expressed in six steps.

Complete the steps.

1. If NumItems .............................. then jump to step 6.

2. Increment ................................... .

3. If ................................................. then set EndOfQueue to .............................. .

4. Increment ................................... .

5. Set the ............................ at the index stored in ........................... to the ............................ being added.

6. Stop.

A stack Abstract Data Type (ADT) is to be implemented using pseudocode, with procedures to initialise it and to push new items onto the stack.

A 1D array Stack stores the contents of the stack.

(i) Study the pseudocode in part (a)(ii) and complete the table of identifiers by writing the missing data types and descriptions.

[2]

(ii) Complete the pseudocode.

CONSTANT MaxSize = 40
DECLARE BasePointer : INTEGER
DECLARE TopPointer : INTEGER
DECLARE Stack : ARRAY[1:40] OF REAL

// initialisation of stack
PROCEDURE Initialise()

................................................................... 1 .

................................................................... 0
ENDPROCEDURE

// push an item onto the stack
PROCEDURE Push(NewItem : REAL)

..............................................................MaxSize THEN

....................................................................

Stack[TopPointer]..................................................
ENDIF
ENDPROCEDURE

[5]

Justify the use of a linked list instead of an array to implement a stack.
