Boolean Logic Diagrams (OCR GCSE Computer Science): Exam Questions

Exam code: J277

52 mins14 questions
1a
2 marks

Complete the truth table in Fig. 1 for the Boolean statement P = NOT(A AND B).

A

B

P

0

0

1

0

1

1

0

1

1

0

Fig. 1

1b
1 mark

Tick (✓) one box to identify the correct logic diagram for P = NOT(A AND B).

Three rows of logic gate diagrams with inputs A, B, and output P in a truth table. Column to tick the box if P equals NOT (A AND B).
2
4 marks

Complete the truth table for the following logic gate.

logic gate

A

B

Q

0

0

0

0

1

1

0

1

3
1 mark

State the number rows needed in a truth table for a Boolean expression with four inputs?

4
1 mark

What is the result of the Boolean expression A ∨ B when A = 0 and B = 1?

5
1 mark

Write the Boolean expression for a logic circuit with an AND gate followed by a NOT gate.

1a
3 marks

A fast food restaurant offers half-price meals if the customer is a student or has a discount card.
The offer is not valid on Saturdays.

A computer system is used to identify whether the customer can have a half-price meal.

The table identifies the three inputs to the computer system:

Input

Value

A

Is a student

B

Has a discount card

C

The current day is Saturday

The logic system P = (A OR B) AND NOT C is used

Complete the following logic diagram for P = (A OR B) AND NOT C by drawing one logic gate in each box.

Bracket diagram with three entries labeled A, B, C competing to reach the final position labeled P. Entries A and B advance to the next round.
1b
2 marks

A truth table can be produced for this logic circuit.

Describe the purpose of a truth table.

1c
1 mark

State how many rows (excluding any headings) would be required in a truth table for the logic expression:

P = (A OR B) AND NOT C

2a
3 marks

Draw the logic diagram for the logic system P = A OR (B AND C)

2b
4 marks

Complete the truth table for the logic system P = NOT (A OR B)

A

B

P

0

0

1

0

1

-

1

0

-

-

-

-

3a
2 marks

The logic diagram below (Fig. 2) shows a system made up of two connected logic gates.

Diagram of a NAND gate with two inputs labeled A and B, producing an output that is inverted by a NOT gate, leading to an output labeled Q.

Label the names of the two gates on the diagram above

3b
4 marks

Complete the truth table below to show the output from the logic system in part(a).

A

B

C

0

0

0

1

1

0

1

1

4
2 marks

Draw the logic diagram represented by Q space equals space A space logical or space not B

5a
4 marks

Complete the truth table for P = (A AND B) OR C

A

B

C

P

0

0

0

0

0

1

0

1

0

0

1

1

1

0

0

1

0

1

1

1

0

1

1

1

5b
1 mark

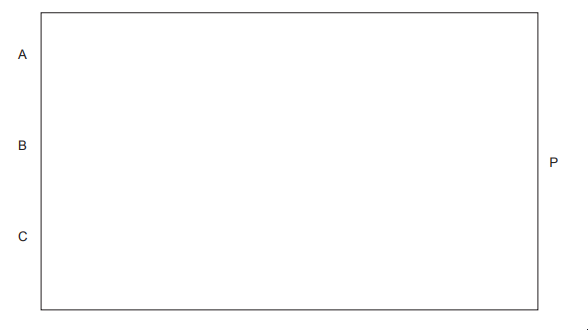

Draw a logic circuit for P = NOT A AND (B OR C)

A rectangle with labels A, B, C on the left and P on the right side, possibly indicating a diagram or flowchart layout.
1
5 marks

Draw the logic diagram represented by:

P =(A OR NOT B) AND (A OR C)

2
3 marks

Write the Boolean expression represented by the logic diagram below:

Logic circuit diagram featuring an AND gate with inputs A and B, an OR gate outputting P, and a NOT gate with input C. Lines connect gates to the OR gate.
3
5 marks

Complete the truth table for the Boolean expression:

P = (A AND B) AND  NOT C

A

B

C

P

0

0

0

0

0

0

1

0

0

1

0

0

0

1

1

0

1

0

0

-

-

-

-

-

-

-

-

-

-

-

-

-

4
3 marks

Given the logic circuit with inputs A, B, and C:

P = (A OR B) AND  NOT C

State the outputs when A = 1, B = 0, and C = 1.
