Producing New Cells (SQA National 5 Biology): Exam Questions

Exam code: X807 75

13 mins7 questions
11 mark

Which of the following structures would not be found in a typical plant cell?

  • Chloroplast

  • Cell membrane

  • Plasmid

  • Mitochondrion

21 mark

During mitosis, which of the following occurs immediately before the cytoplasm divides?

  • Nuclear membranes form.

  • Chromosomes line up at the equator.

  • Pairs of chromatids are separated.

  • Chromosomes shorten and thicken.

3
Sme Calculator
1 mark

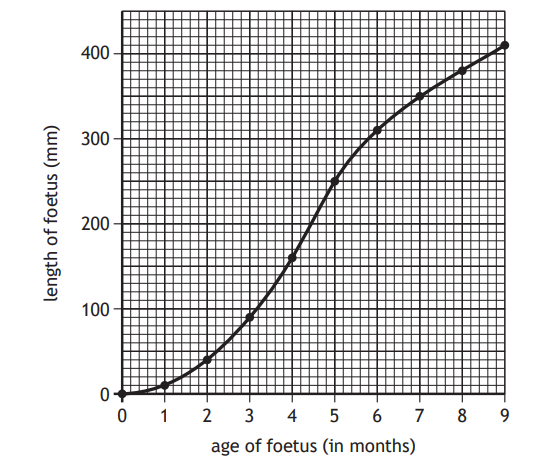

The graph shows the growth of a foetus.

Graph showing foetus length in millimetres increasing from 0 to 400 as age increases from 0 to 9 months, with a steep upward curve.

The average monthly increase in the length of the foetus from month 5 to month 9 is

  • 32 mm

  • 40 mm

  • 160 mm

  • 340 mm

41 mark

A chemical called colchicine stops cells from producing spindle fibres during mitosis, which prevents further stages occurring.

Which stage of mitosis would still occur when colchicine is present?

  • Chromosomes move to opposite poles of the cell.

  • Chromatids are pulled apart.

  • Chromosomes shorten and thicken.

  • Two diploid cells produced.

51 mark

A role of stem cells in the human body is to produce

  • antibodies for defence

  • new skin tissue to repair a cut

  • enzymes for digestion

  • hormones for communication.

6a1 mark

Tissue stem cells can be transplanted to replace blood cells.

Describe the feature of stem cells that allows them to be used in this way.

6b
Sme Calculator
1 mark

To successfully treat a blood disorder, between 2 million and 4 million stem cells per kilogram of the patient’s body mass are needed.

Calculate the minimum number of stem cells required to treat a patient with a mass of 78.5 kg.

........................million

6c2 marks

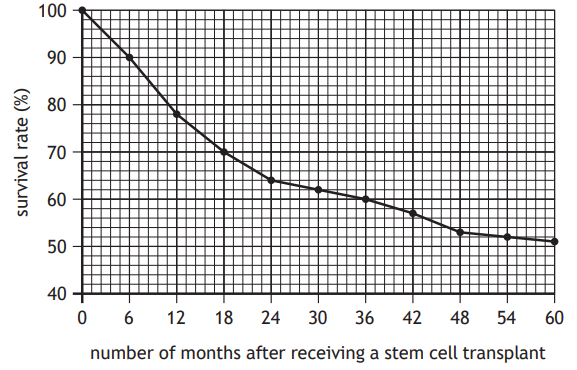

The graph shows the survival rates of patients with a blood disorder who have received a stem cell transplant.

Graph showing survival rate (%) decreasing from 100% to 50% over 60 months after stem cell transplant, with a steeper decline in the first 12 months.

(i) Identify the survival rate of patients 24 months after receiving a stem cell transplant.

[1]

............................%

(ii) Describe the relationship between the number of months after receiving a stem cell transplant and the survival rate.

[1]

6d1 mark

Other than tissue, name another type of stem cell.

7a2 marks

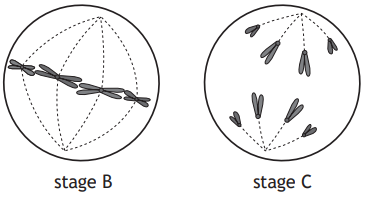

Two stages of mitosis are shown in the diagrams.

Diagram with two circles. Stage B shows insect wings aligned in a line. Stage C shows wings radiating outwards. Both circles have dashed lines.

(i) Name the structures that pull the pairs of chromatids apart.

[1]

(ii) Describe what happens immediately after stage C.

[1]

7b1 mark

Stem cells can divide in order to self-renew.

State the feature of stem cells that gives them the potential to develop into different types of cell.
