Exam code: X857 75
A uniform electric field exists between plates Q and R.

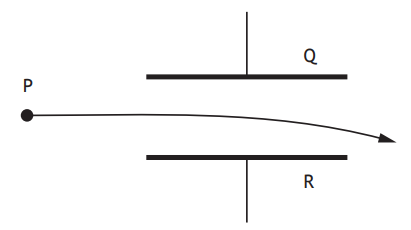

The diagram shows the path taken by particle P as it passes through the field.
Which row in the table identifies the charge on particle P, the charge on plate Q, and the charge on plate R?
Charge on particle P | Charge on plate Q | Charge on plate R | |
A | negative | positive | negative |
B | no charge | negative | positive |
C | no charge | positive | negative |
D | positive | negative | positive |
E | positive | positive | negative |
Did this page help you?
An electric field exists around two point charges Q and R.

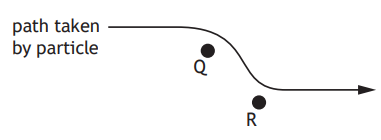

The diagram shows the path taken by a charged particle as it travels through the field.
The motion of the particle is as shown.
Which row in the table identifies the charge on the particle, the charge on Q, and the charge on R?
Charge on particle | Charge on Q | Charge on R | |
A | positive | negative | negative |
B | negative | negative | positive |
C | negative | positive | negative |
D | positive | negative | positive |
E | positive | positive | positive |
Did this page help you?
An electric field exists around two point charges Q and R.

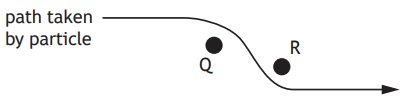

The diagram shows the path taken by a charged particle as it travels through the field.
The motion of the particle is as shown.
Which row in the table identifies the charge on the particle, the charge on Q and the charge on R?
Charge on particle | Charge on Q | Charge on R | |
A | positive | negative | negative |
B | negative | negative | negative |
C | negative | positive | positive |
D | positive | negative | positive |
E | positive | positive | negative |
Did this page help you?
