Exam code: 4MA1

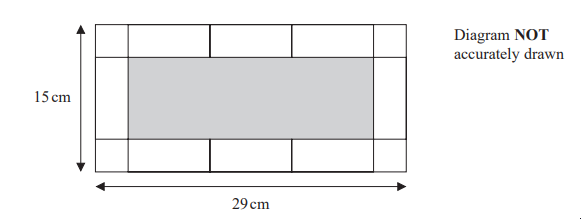

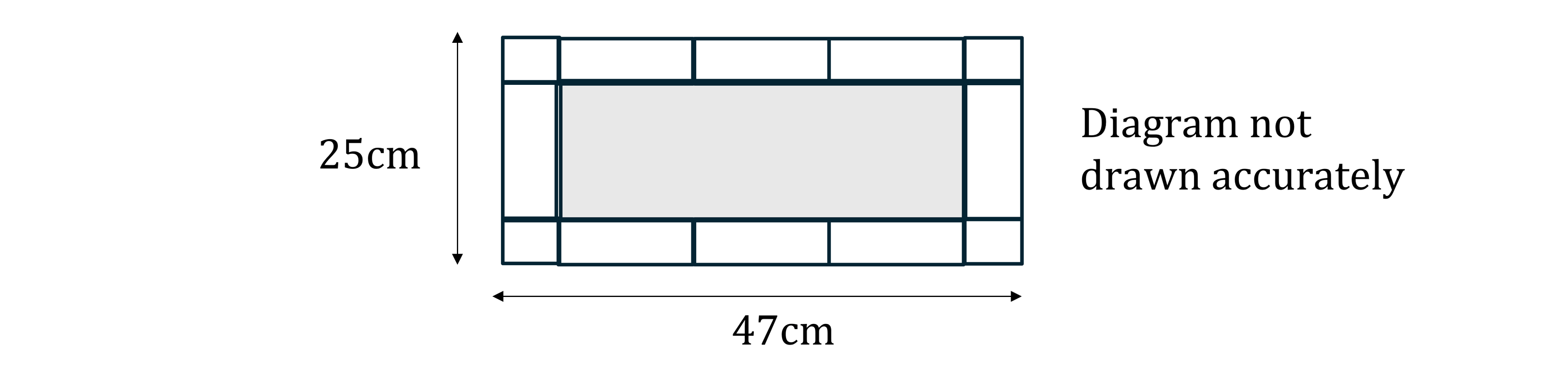

5 marksCalvin has 8 identical rectangular tiles and 4 identical square tiles.
He arranges the tiles to fit exactly round the edge of a rectangle, as shown in the diagram below.
Work out the area of one of Calvin’s rectangular tiles
Did this page help you?
4 marksThe width of a rectangle is 8 cm less than the length of the rectangle.
The perimeter of the rectangle is 54 cm.
Find the area of the rectangle.
Did this page help you?

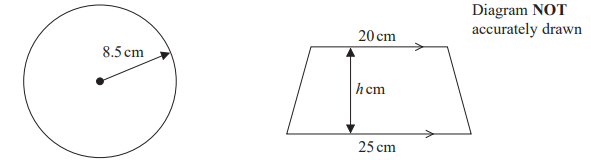

4 marksThe diagram shows a circle and a trapezium.
The height of the trapezium is
cm.
The area of the circle is equal to the area of the trapezium.
Work out the value of .
Give your answer correct to 1 decimal place.
Did this page help you?
3 marksThe diagram shows a rectangle measuring 10cm by 3 cm.

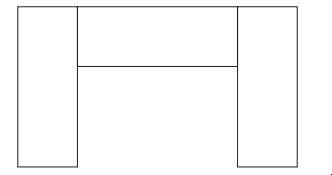

A shape is made by placing 3 of these rectangles together as shown in the diagram.
Work out the perimeter of the shape.
Did this page help you?

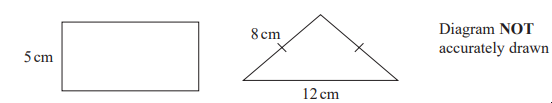

3 marksThe diagram shows a rectangle and an isosceles triangle.
The perimeter of the rectangle is equal to the perimeter of the triangle.
Find the area of the rectangle
Did this page help you?

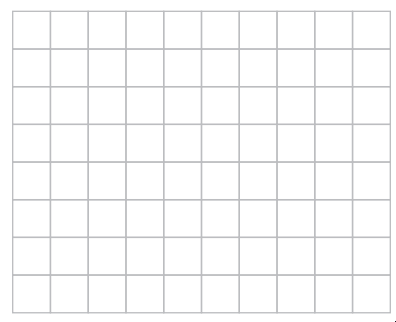

Here is a centimetre grid
On the grid, draw a rectangle with an area of 20cm2
Did this page help you?
