11 mark
This is the circuit symbol for which component?
A fuse
A buzzer
A transistor
A relay
Did this page help you?
Electric Circuits & Electrical Safety (Cambridge (CIE) IGCSE Physics): Exam Questions
Exam code: 0625 & 0972
4 hours59 questions
21 mark
Which of the following circuit symbols is for a thermistor?
Did this page help you?
31 mark
Which of the circuit diagrams above shows a fuse which has been correctly connected?
Did this page help you?
41 mark
The diagram shows two resistors connected in parallel.
The total resistance of this combination will be:
The sum of 2.0 Ω and 4.0 Ω
Greater than 4.0 Ω
Between 2.0 Ω and 4.0 Ω
Less than 2.0 Ω
Did this page help you?
51 mark
Extended tier only
Which diagram shows the correct symbol for a diode, and the correct direction of current moving through it?
Did this page help you?
61 mark
The diagram shows an electric circuit.
When the switch is open, which lamp(s) are not lit?
R only
S only
R, S and T
S and T only
Did this page help you?
7
1 mark
1 markWhich symbol represents an electric heater?
Did this page help you?
11 mark
The plug for an electric lamp contains a 3 A fuse. The fuse’s job is to protect the lamp if too much current flows.
Where is the fuse positioned, and what happens when the fuse does its job?
| Where is it positioned? | What does it do? |
A | live wire | reduces the current to 3 A |
B | neutral wire | breaks the circuit |
C | live wire | breaks the circuit |
D | neutral wire | reduces the current to 3 A |
Did this page help you?
21 mark
Which of the diagrams below shows a fuse which has been correctly connected to a circuit?
Did this page help you?
31 mark
Both fuses and circuit breakers are devices which protect devices from high currents that could cause them to get too hot and catch fire.
The diagram shows two possible positions where a fuse or a circuit breaker could be positioned.
Which location would be suitable for a fuse, and which would be suitable for a circuit breaker?
| fuse | circuit breaker |
A | P | P |
B | P | Q |
C | Q | P |
D | Q | Q |
Did this page help you?
41 mark
The diagram shows two bulbs, which have been connected in parallel. A fuse has been included in the circuit.
Each of the ammeters reads 1.2 A.
What fuse should be put in this circuit?
1.0 A
3.0 A
5.0 A
13.0 A
Did this page help you?
51 mark
A surge of current in a kettle melts the 13 A fuse.
What will happen to the kettle next time it is used if the fuse is replaced with a 3 A fuse?
The fuse will melt and the kettle will be damaged.
The fuse will not blow and the kettle will operate normally.
The fuse will melt, but the kettle will not be damaged.
The fuse will not melt, but the kettle will not work.
Did this page help you?
61 mark
The diagram shows a toaster that has been wired up.
Three fuses have been connected to the toaster, but only one or two have been connected correctly.
Which of the fuses has been positioned correctly?
Fuse X and fuse Y
Fuse X only
Fuse Z only
Fuse X and fuse Z
Did this page help you?
71 mark
An oven is wired into somebody’s kitchen. The oven is protected by a fuse, and functions normally, but the owner notices that the wires that connect the oven to the mains electricity supply get quite hot.
What could be done to reduce the temperature of the wires?
Add a circuit breaker to the circuit.
Put thicker insulation on the wires.
Replace the wires with thicker diameter wires.
Replace the wires with thinner diameter wires.
Did this page help you?
81 mark
The diagram shows two resistors connected in series with a battery.
What is the current through the battery?
1.5 A
150 A
0.67 A
15 A
Did this page help you?
91 mark
A book shop owner sets up the circuit below, but they find that the lamp is too dim.
What change can be made to the circuit to increase the brightness of the bulb?
Putting another resistor in parallel with the battery.
Putting a resistor in parallel with the bulb.
Putting another resistor in series with the resistor.
Putting another resistor in parallel with the resistor.
Did this page help you?
101 mark
A student sets up the circuit below, it contains four fuses and four bulbs.
She finds that none of the bulbs are lit, but only one of the fuses has blown.
Which fuse has blown?
Did this page help you?
111 mark

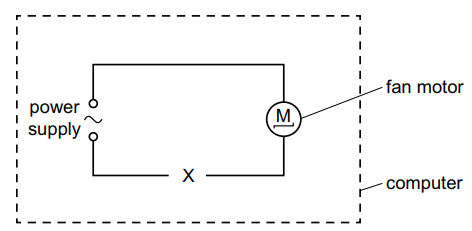

A computer engineer wants the speed of a fan to increase when the temperature inside a computer increases. The engineer knows that a larger current causes the fan to turn more quickly
Which component should be placed at X to make this happen?
a relay
a thermistor
a transformer
a variable resistor
Did this page help you?
121 mark
An electric kettle has a metal casing. The cable for the kettle contains a wire that is connected to the earth pin of the plug.
Which danger does this guard against?
the cable to the kettle becoming too hot
the casing of the kettle becoming live
the casing of the kettle becoming wet on the outside
the casing of the kettle overheating
Did this page help you?
131 mark

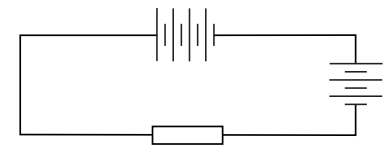

The circuit diagram shows cells connected with a resistor in a series circuit.
Each cell has an electromotive force (e.m.f.) of 1.5 V
What is the total e.m.f. in the circuit?
1.5 V
4.5 V
6.0 V
10.5 V
Did this page help you?
141 mark
1 markA student connects the circuit shown.
Which switches must be closed for the bell to ring without lighting the lamp?
1 and 2 only
1 and 3 only
1, 3 and 4
2, 3 and 4
Did this page help you?
151 mark
1 markA double-insulated electrical appliance must be connected safely to the electricity supply.
Which statement is correct?
It must be connected with a fuse and an earth wire.
It can be connected with a fuse only.
It can be connected with an earth wire only.
It does not need a fuse or an earth wire.
Did this page help you?
161 mark
1 markThe circuit diagram shows two identical lamps connected in parallel to a cell. Three ammeters, X, Y and Z, are also connected in the circuit, as shown.
Which statement about the current in X is correct?
It is equal to the current in Y and to the current in Z.
It is less than either the current in Y or the current in Z.
It is equal to the sum of the current in Y and the current in Z.
It is equal to the difference between the current in Y and the current in Z.
Did this page help you?
11 mark
Extended tier only
A homeowner buys a security light that switches on automatically when it gets dark.
The security light contains the circuit, shown below.
When it gets dark, what happens to the resistance of the LDR, and what happens to the potential difference across the LDR?
| Resistance of LDR | p.d. across LDR |
A | increases | increases |
B | decreases | increases |
C | increases | decreases |
D | decreases | decreases |
Did this page help you?
21 mark
Extended tier only
Two resistors are connected in parallel.
What is the combined resistance of the combination?
20 Ω
4.8 Ω
0.21 Ω
1.5 Ω
Did this page help you?
31 mark
Extended tier only
Two resistors are connected in parallel.
The current through the top resistor is 2.0 A.
What is the reading on the ammeter?
6.0 A
2.0 A
4.0 A
3.5 A
Did this page help you?
41 mark
Extended tier only
A 10 Ω and a 30 Ω resistor are connected in series, as shown in the diagram below, making a potential divider circuit.
What would be the reading on the voltmeter?
2.0 V
6.0 V
4.0 V
8.0 V
Did this page help you?
51 mark
Which of the following statements about the current in ammeters X, Y and Z is correct?
The current through X equals the current through Y + the current through Z.
The current through X is equal to the current through Z.
The current through X is equal to the current through Y.
The current through Y is greater than the current through Z.
Did this page help you?
61 mark
Extended tier only
All the light bulbs in the diagrams above are identical. Each one is rated as ‘10 W, 230 V’.
In which of the diagrams are all the bulbs working at their normal brightness?
Did this page help you?
71 mark
A student connects together some identical resistors in three different combinations, as shown in the diagram.
Which of the answers below shows the correct order of the combinations from the lowest resistance to the highest?
P → Q → R
Q → P → R
Q → R → P
P → R → Q
Did this page help you?
81 mark
A teacher writes a set of notes about two non-identical bulbs which are connected in parallel.
He makes one mistake. Which of the statements below is incorrect?
They have the same current flowing through them.
They have the same potential difference across them.
They can be switched on and off individually.
If one bulb blows, the other will continue to work.
Did this page help you?
91 mark
A person wants to install a circuit breaker to protect themselves and their lawnmower from too much current.
Under normal operating conditions, the lawnmower carries 4 A of current.
The manufacturer provides the graph below with the circuit breaker.
What will happen when the current is 4 A, and what will happen if the current rises to 14 A?
| 4 A | 14 A |
A | circuit does not break | circuit does not break |
B | circuit does not break | circuit breaks quickly |
C | circuit breaks quickly | circuit does not break |
D | circuit breaks quickly | circuit breaks quickly |
Did this page help you?
101 mark
The battery on a bicycle is connected in parallel to its lamp and bell.
The circuit includes two switches, S1 and S2.
The cyclist closes S1 to light the lamp.
She then also closes S2 to sound the bell.
What happens to the current in the battery and the power output from the battery when the cyclist closes S2?
current in the battery | power output from the battery | |
|---|---|---|
A | increases | increases |
B | increases | stays the same |
C | stays the same | increases |
D | stays the same | stays the same |
Did this page help you?
