1
1 mark
Which of the lists of metals below contains only metals which are non-ferrous?
Iron, steel, nickel
Cobalt, copper, steel
Aluminium, brass, copper
Iron, tin, aluminium
Was this exam question helpful?
Simple Phenomena of Magnetism (Cambridge (CIE) IGCSE Physics): Exam Questions
Exam code: 0625 & 0972
2 hours40 questions
Smart practice available on this topic
Answer questions with adaptive difficulty and personalised feedback
2
1 mark
Which of the following choices of metal would be suitable for:
Use as a permanent magnet?
Use as the core in an electromagnet?
| Use as a permanent magnet | Use as the core of an electromagnet |
A | steel | iron |
B | steel | steel |
C | iron | iron |
D | iron | steel |
Was this exam question helpful?
3
1 mark
Which of the lists below are metals that are ferrous?
aluminium and iron
steel and iron
steel and lead
tin and iron
Was this exam question helpful?
4
1 mark
Which statement about a permanent bar magnet is incorrect?
The S-pole attracts the N-pole of another magnet
The S-pole repels the S-pole of another magnet
It cannot repel a non-magnetic material
It is made from a soft magnetic material (such as soft iron)
Was this exam question helpful?
5
1 mark
Extended tier only
Which magnet has the strongest magnetic field?
Was this exam question helpful?
6
1 mark
What material can a temporary magnet be made from?
plastic
soft iron
steel
wood
Was this exam question helpful?
7
1 mark

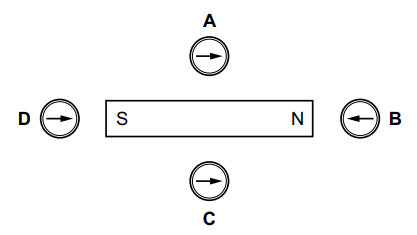

The diagram shows a bar magnet and four plotting compasses.
Which compass correctly shows the direction of the magnetic field due to the magnet?
Was this exam question helpful?
8
1 mark
Point X is near to a bar magnet, as shown

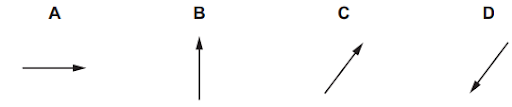

Which arrow indicates the direction of the magnetic field of the bar magnet at point X?
Was this exam question helpful?
9
1 mark
The diagram shows the magnetic field pattern around a bar magnet.
At which position is the magnetic field strongest?
Was this exam question helpful?
1
1 mark
A student makes a series of statements about a permanent bar magnet.
Which of them is true?
The North pole of a permanent bar magnet will repel the North pole of another magnet.
A permanent bar magnet must be made from a soft magnetic material.
A permanent bar magnet can repel a magnetic material.
The field lines of a permanent bar magnet cross each other where the field is strongest.
Was this exam question helpful?
2
1 mark
A student lines up some permanent magnets with soft iron nails in between as shown in the diagram below.
What would the magnetic poles of locations X and Y be?
| X | Y |
A | north | north |
B | north | south |
C | south | north |
D | south | south |
Was this exam question helpful?
3
1 mark
Which of the following statements could be used to describe something a permanent magnet could do?
It will repel non-magnetic materials.
It will repel non-ferrous materials.
It will attract ferrous materials.
It will have a single magnetic pole.
Was this exam question helpful?
4
1 mark
The diagram shows two bar magnets, stored with metal keepers across the ends. The keepers help to keep the magnets magnetised.
The material used for the keepers becomes strongly magnetised when placed in contact with the magnets, but does not remain magnetised when taken away from the magnets.
What is a suitable metal to use for the magnets and what is a suitable metal to use for the keepers?
| Metal for keeper | Metal for magnet |
A | steel | steel |
B | iron | steel |
C | steel | iron |
D | iron | iron |
Was this exam question helpful?
5
1 mark
Which test could be used to find which end of a magnet is the south pole?
putting it near a ferrous metal
putting it near a compass needle and see whether the needle points towards the pole
putting it near a compass needle and see whether the needle points away from the pole
putting it near a non-ferrous metal
Was this exam question helpful?
6
1 mark

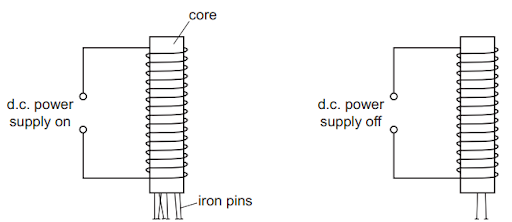

A student counts how many iron pins an electromagnet picks up when its power supply is switched on. Then, she counts how many pins are picked up when the power supply is switched off.
She repeats the experiment using cores made of different materials. The results are shown.
Which core is made out of soft iron?
| pins picked up with the power supply on | pins picked up with the power supply off |
|---|---|---|
A | 0 | 0 |
B | 2 | 7 |
C | 8 | 5 |
D | 12 | 0 |
Was this exam question helpful?
7
1 mark
An unmagnetised piece of soft iron is placed close to a strong permanent magnet, as shown.
What is the induced polarity of end X of the soft iron and in which direction does the magnetic force act on the soft iron?
polarity of end X | direction of force on the soft iron | |
|---|---|---|
A | N | to the left |
B | N | to the right |
C | S | to the left |
D | S | to the right |
Was this exam question helpful?
8
1 mark
A student has two different materials.
Material 1 magnetises easily and loses its magnetism as soon as it is removed from a magnetic field.
Material 2 is difficult to magnetise but retains its magnetism for a long time.
Which row shows the most suitable use for these materials?
material 1 | material 2 | |
|---|---|---|
A | core of an electromagnet | core of an electromagnet |
B | bar magnet | bar magnet |
C | bar magnet | core of an electromagnet |
D | core of an electromagnet | bar magnet |
Was this exam question helpful?
1
1 mark
A student has a collection of metal bars that keep sticking to each other. She suspects that they might be magnets, so she runs a test.
She holds end V of rod 1, near to each end of the two other rods. The ends are shown in the diagram below.
Her results are as follows:
End V:
Repels end W
Attracts end X
Attracts end Y
Attracts end Z
Which of the metal rods is a magnet?
1 and 2
2 and 3
1 only
2 only
Was this exam question helpful?
2
1 mark
A student has what he believes to be a permanent magnet. He wants to find out which end is the magnet’s North pole.
What could he do to find out?
Put the magnet under a piece of paper, and sprinkle iron filings on top.
Put it near to a piece of magnetic material, like a steel paperclip.
Place a compass near it.
Put it near to a piece of ferrous material.
Was this exam question helpful?
3
1 mark
A teacher, Mr. Garrison, brings a horseshoe magnet near to an iron bar as shown in the diagram.
Is the iron bar attracted to or repelled from the horseshoe magnet?
Which diagram shows the polarity of the poles that are produced in the iron bar?
Rod | Attracted / Repelled | Pole Distribution |
A | repelled |  |
B | repelled |  |
C | attracted |  |
D | attracted |  |
Was this exam question helpful?
4
1 mark
A student wants to make an electromagnet that acts like a permanent magnet that will retain its magnetism after it is switched off. The student is using some easy-to-find materials that are in the school lab.
Which metal should the student use, and which setting on the power supply?
| Metal | Power supply setting |
A | Soft iron | 6V a.c. |
B | steel | 6V a.c. |
C | Soft iron | 6V d.c. |
D | steel | 6V d.c. |
Was this exam question helpful?
5
1 mark
A student carries out an experiment to find out which of four metal rods makes the best permanent magnet.
The rod is attached to the south pole of a permanent magnet, and then paper clips are attached to the rod. The number of paper clips that can be held by the rod is counted.
The permanent magnet is then removed from the rod, and the number of paper clips that remain attached are counted.
The results are summarised in the table below.
Which of the rods becomes the strongest permanent magnet?
rod | number of paper clips held by the rod | |
when the magnet is present | when the magnet is removed | |
A | 5 | 2 |
B | 4 | 3 |
C | 2 | 0 |
D | 3 | 2 |
Was this exam question helpful?
