IGCSEMathsCambridge (CIE)International MathsExtendedExam QuestionsCoordinate Geometry & GraphsUsing Calculators for Graphs, Equations & Inequalities

Using Calculators for Graphs, Equations & Inequalities (Cambridge (CIE) IGCSE International Maths: Extended): Exam Questions

Exam code: 0607

2 hours15 questions
Medium
Hard
Very Hard
1a
Sme Calculator2 marks
A coordinate plane with the x-axis labelled from 0 to 4 and the y-axis labelled from -1 to 5. Both axes have arrows indicating positive directions.

straight f open parentheses x close parentheses equals 5 minus 1.25 x space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space straight g open parentheses x close parentheses space equals 1.5 x minus 1

On the diagram, sketch the graph of y equals straight f open parentheses x close parentheses for 0 less or equal than x less or equal than 4.

How did you do?

1b
Sme Calculator2 marks

On the diagram, sketch the graph of y equals straight g open parentheses x close parentheses for 0 less or equal than x less or equal than 4.

How did you do?

1c
Sme Calculator1 mark

Find x when straight f left parenthesis x right parenthesis equals straight g left parenthesis x right parenthesis.

How did you do?

2
Sme Calculator3 marks

2 to the power of 3 x plus 1 end exponent equals 8 to the power of 2 minus x end exponent

Find the value of x

x equals.......................

How did you do?

3a
Sme Calculator2 marks
Cartesian graph with x-axis from -3 to 3 and y-axis from -10 to 20. Axes are labelled with arrows, x pointing right, y pointing up.

straight f left parenthesis x right parenthesis equals x cubed minus 5 x plus 3 for negative 3 less or equal than x less or equal than 3

On the diagram, sketch the graph of y equals straight f open parentheses x close parentheses.

How did you do?

3b
Sme Calculator2 marks

Find the coordinates of the local maximum.

( ...................... , ......................)

How did you do?

3c
Sme Calculator3 marks

Find the zeros of the graph of y equals straight f left parenthesis x right parenthesis.

How did you do?

4a
Sme Calculator3 marks
Graph with horizontal x-axis and vertical y-axis intersecting at the origin. 2 and -2 are labelled at each end of the x axis. Arrows indicate positive direction for each axis.

straight f left parenthesis x right parenthesis equals x cubed minus 2 x straight g left parenthesis x right parenthesis equals 1

On the diagram, sketch the graphs of space y equals straight f left parenthesis x right parenthesis and space y equals straight g left parenthesis x right parenthesis for negative 2 less or equal than x less or equal than 2.

How did you do?

4b
Sme Calculator3 marks

Use your graphs to solve space x cubed minus 2 x minus 1 equals 0.

How did you do?

4c
Sme Calculator2 marks

Use your graphs to solve space x cubed minus 2 x greater than 1.

How did you do?

5
Sme Calculator3 marks

Use a graphical method to solve the inequality.

Show a sketch of the graph.

2 to the power of x plus x greater than 5

How did you do?

1a
Sme Calculator3 marks
Graph with x-axis labeled from 0 to 360 and y-axis labeled from -10 to 10. Both axes have arrows indicating positive direction.

straight f open parentheses x close parentheses equals fraction numerator 1 over denominator sin x degree end fraction for 0 less or equal than x less or equal than 360

On the diagram, sketch the graph of y equals straight f open parentheses x close parentheses.

How did you do?

1b
Sme Calculator1 mark

Find the coordinates of the local minimum point.

How did you do?

1c
Sme Calculator2 marks

Write down the equations of the three asymptotes of the graph of y equals straight f left parenthesis x space right parenthesis.

How did you do?

1d
Sme Calculator2 marks

The equation straight f open parentheses x close parentheses equals k has no solutions.

Write down the range of values of k.

How did you do?

1e
Sme Calculator3 marks

By sketching another graph on the diagram, solve the equation fraction numerator 1 over denominator sin space x degree end fraction equals 5 sin open parentheses x over 2 close parentheses degree for 0 less or equal than x less or equal than 360 degree.

How did you do?

2a
Sme Calculator4 marks

A medicine delivery company uses drones to deliver medications to remote mountain villages.

A radar system is used to control the drones, as long as the controller is within a certain distance from the drone, called the radar visibility, V metres,

A model for the radar visibility, V metres, at different altitudes, x metres up a particular mountain is

V equals fraction numerator 600 minus x over denominator 4 end fraction plus square root of 70 space 000 plus x squared end root

On the diagram, sketch the graph of V against x.

Graph with horizontal axis labelled 'Altitude (x metres)' from 0 to 400, and vertical axis labelled 'Visibility (V m)' from 400 to 600. No data is plotted.

How did you do?

2b
Sme Calculator2 marks

Find, correct to the nearest metre,

(i) the minimum visibility,

[1]

(i) the altitude for which the visibility is at its minimum.

[1]

How did you do?

2c
Sme Calculator1 mark

Write down a reason why the visibility given by the model might be different to the actual visibility.

How did you do?

3a
Sme Calculator2 marks
A Cartesian coordinate plane with x-axis ranging from -1 to 4.7 and y-axis ranging from -10 to 9.

straight f left parenthesis x right parenthesis equals open parentheses x minus 2 close parentheses cubed minus 5 x plus 12 for negative 1 less or equal than x less or equal than 4.7

On the diagram, sketch the graph of y equals straight f open parentheses x close parentheses.

How did you do?

3b
Sme Calculator2 marks

Write down the coordinates of the local maximum.

How did you do?

3c
Sme Calculator2 marks

The equation open parentheses x minus 2 close parentheses cubed minus 5 x plus 12 equals k has exactly 2 solutions.

Find the values of k.

How did you do?

3d2 marks

straight g left parenthesis x right parenthesis equals negative open parentheses x minus 1 close parentheses squared for negative 1 less or equal than x less or equal than 4.7

On the diagram, sketch the graph of y equals straight g open parentheses x close parentheses.

How did you do?

3e
Sme Calculator1 mark

Solve straight f left parenthesis x right parenthesis equals straight g open parentheses x close parentheses.

How did you do?

4
Sme Calculator1 mark

The curve  y equals x squared minus 2 x plus 1  is drawn on a grid.

A line is drawn on the same grid.

The points of intersection of the line and the curve are used to solve the equation  x squared minus 7 x plus 5 equals 0.

Find the equation of the line in the form  y equals m x plus c.

y equals ..................................................

How did you do?

5a4 marks

On the diagram, sketch the graphs of table row y equals cell fraction numerator 1 over denominator x squared plus 1 end fraction end cell end table and table row y equals cell x cubed minus 2 x end cell end table.

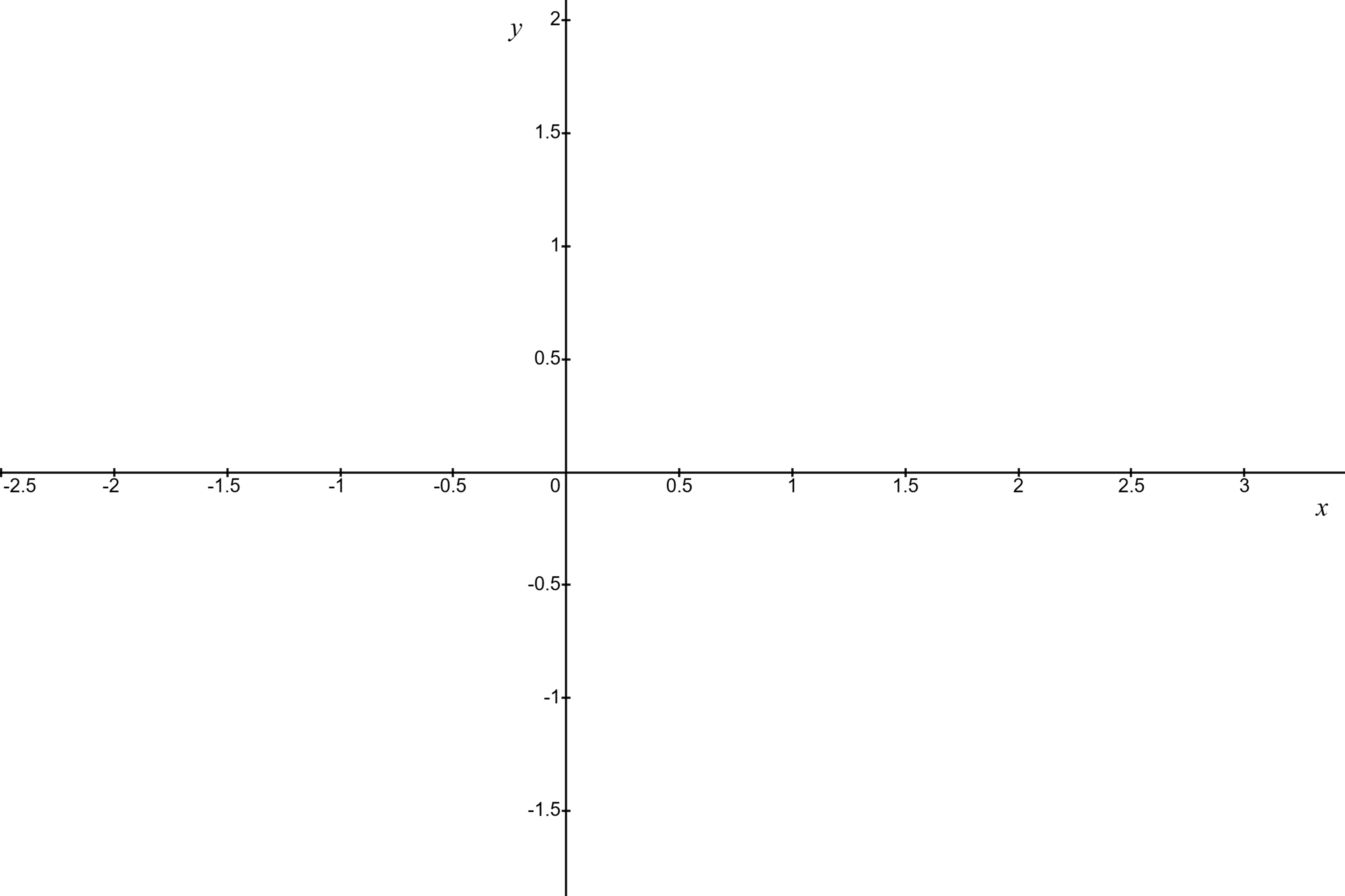

Axes labelled -2.5 to 3 on the x axis and -1.5 to 2 on the y axis

How did you do?

5b3 marks

Solve.

table row cell fraction numerator 1 over denominator x squared plus 1 end fraction end cell equals cell x cubed minus 2 x end cell end table

How did you do?

5c2 marks

Solve.

table row cell fraction numerator 1 over denominator x squared plus 1 end fraction space end cell less than cell space x cubed minus 2 x end cell end table

How did you do?

5d1 mark

Find the coordinates of the minimum point of y equals x cubed minus 2 x where x greater than 0.

How did you do?

6a3 marks

The graph of y equals 1 plus 2 to the power of x has one asymptote. The equation of the asymptote is y equals 1.

Draw the graph of y equals 1 plus 2 to the power of x on your calculator. Use this to sketch the graph of y equals 1 plus 2 to the power of x on the axes provided.

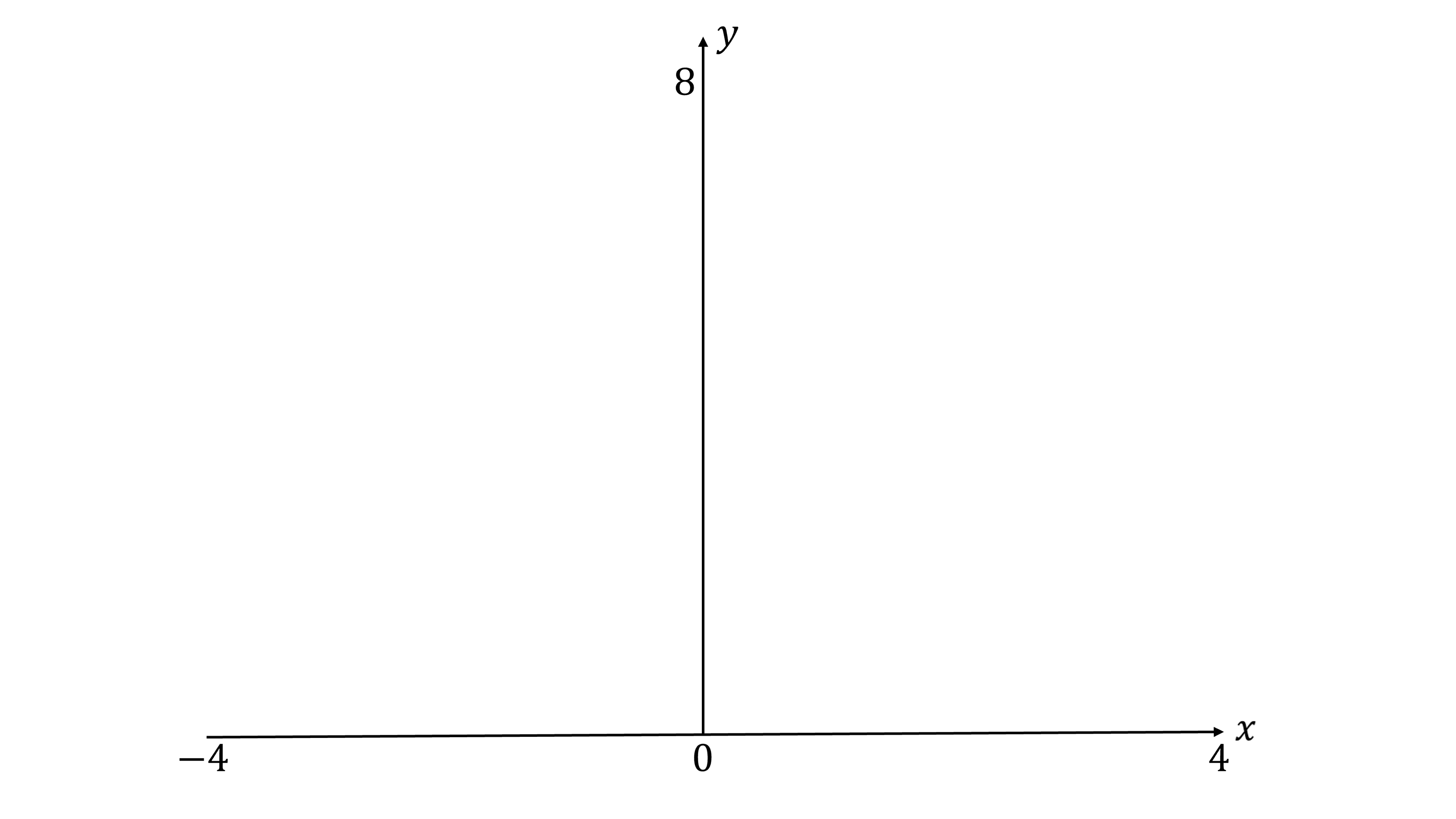

Graph showing horizontal x-axis from -4 to 4 and vertical y-axis from 0 to 8, crossing at the origin.

Label clearly the y-intercept and the asymptote.

How did you do?

6b3 marks

Solve the following equation.

1 plus 2 to the power of x equals x plus 3

Give your answers to 2 decimal places where appropriate.

How did you do?

6c1 mark

Solve the following inequality.

1 plus 2 to the power of x greater than x plus 3

How did you do?

6d2 marks

The solutions in part (b) are also solutions to the equation below, where p and q are positive integers.

x equals log subscript p open parentheses x plus q close parentheses

Find p and q.

How did you do?

1a
Sme Calculator3 marks
Cartesian coordinate plane with x-axis ranging from -6 to 6 and y-axis from -9 to 9, intersecting at the origin (0, 0).

straight f open parentheses x close parentheses equals fraction numerator x squared plus 3 x over denominator open parentheses x minus 2 close parentheses open parentheses x plus 1 close parentheses end fraction

On the diagram sketch the graph of y equals straight f open parentheses x close parentheses for values of x between negative 6 and 6.

How did you do?

1b
Sme Calculator2 marks

Write down the equations of the asymptotes parallel to the y‑axis.

How did you do?

1c
Sme Calculator2 marks

Find the zeros of the graph of y equals straight f open parentheses x close parentheses.

How did you do?

1d
Sme Calculator7 marks

straight g open parentheses x close parentheses equals x minus 3

(i) On the diagram, sketch the graph of y equals straight g open parentheses x close parentheses for negative 6 less or equal than x less or equal than 6.

[1]

(ii) Use your graphs to solve straight f open parentheses x close parentheses equals straight g open parentheses x close parentheses.

[3]

(iii) Solve straight g open parentheses x close parentheses greater than straight f open parentheses x close parentheses.

[3]

How did you do?

2a
Sme Calculator2 marks
Graph with a horizontal x-axis from 0 to 360 and a vertical y-axis from -1 to 1. Both axes are labelled x and y respectively.

straight f open parentheses x close parentheses equals open parentheses cos space x degree close parentheses squared straight g open parentheses x close parentheses equals 0.5 minus 0.001 x

On the diagram, sketch the graph of space y equals straight f open parentheses x close parentheses for 0 less or equal than x less or equal than 360.

How did you do?

2b
Sme Calculator2 marks

On the same diagram, sketch the graph of y equals straight g left parenthesis x right parenthesis for 0 less or equal than x less or equal than 360.

How did you do?

2c
Sme Calculator4 marks

Solve straight f open parentheses x close parentheses equals straight g open parentheses x close parentheses for 0 less or equal than x less or equal than 360.

How did you do?

2d3 marks

Solve straight f open parentheses x close parentheses less than straight g open parentheses x close parentheses for 0 less or equal than x less or equal than 360.

How did you do?

3a
Sme Calculator4 marks
Graph with x and y axes, centred at zero. x-axis ranges from -5 to 5, y-axis from -9 to 8, both with arrows indicating positive direction.

space straight f open parentheses x close parentheses equals x plus fraction numerator 5 over denominator open parentheses x minus 2 close parentheses open parentheses x plus 3 close parentheses end fraction

Sketch the graph of space y equals straight f open parentheses x close parentheses for values of x between negative 5 and 5.

How did you do?

3b2 marks

Write down the equations of the asymptotes parallel to the y-axis.

How did you do?

3c
Sme Calculator6 marks

(i) Find the coordinates of the local maximum.

(............ , ............) [2]

(ii) Find the coordinates of the local minimum.

(............ , ............) [2]

(iii) Write down the range of values of k for which straight f open parentheses x close parentheses equals k has exactly one solution.

[2]

How did you do?

3d
Sme Calculator6 marks

straight g open parentheses x close parentheses equals negative 4 minus x

(i) Solve the equation straight f open parentheses x close parentheses equals straight g open parentheses x close parentheses.

[3]

(ii) Find the solutions to the inequality straight f open parentheses x close parentheses greater than straight g open parentheses x close parentheses.

[3]

How did you do?

4a2 marks

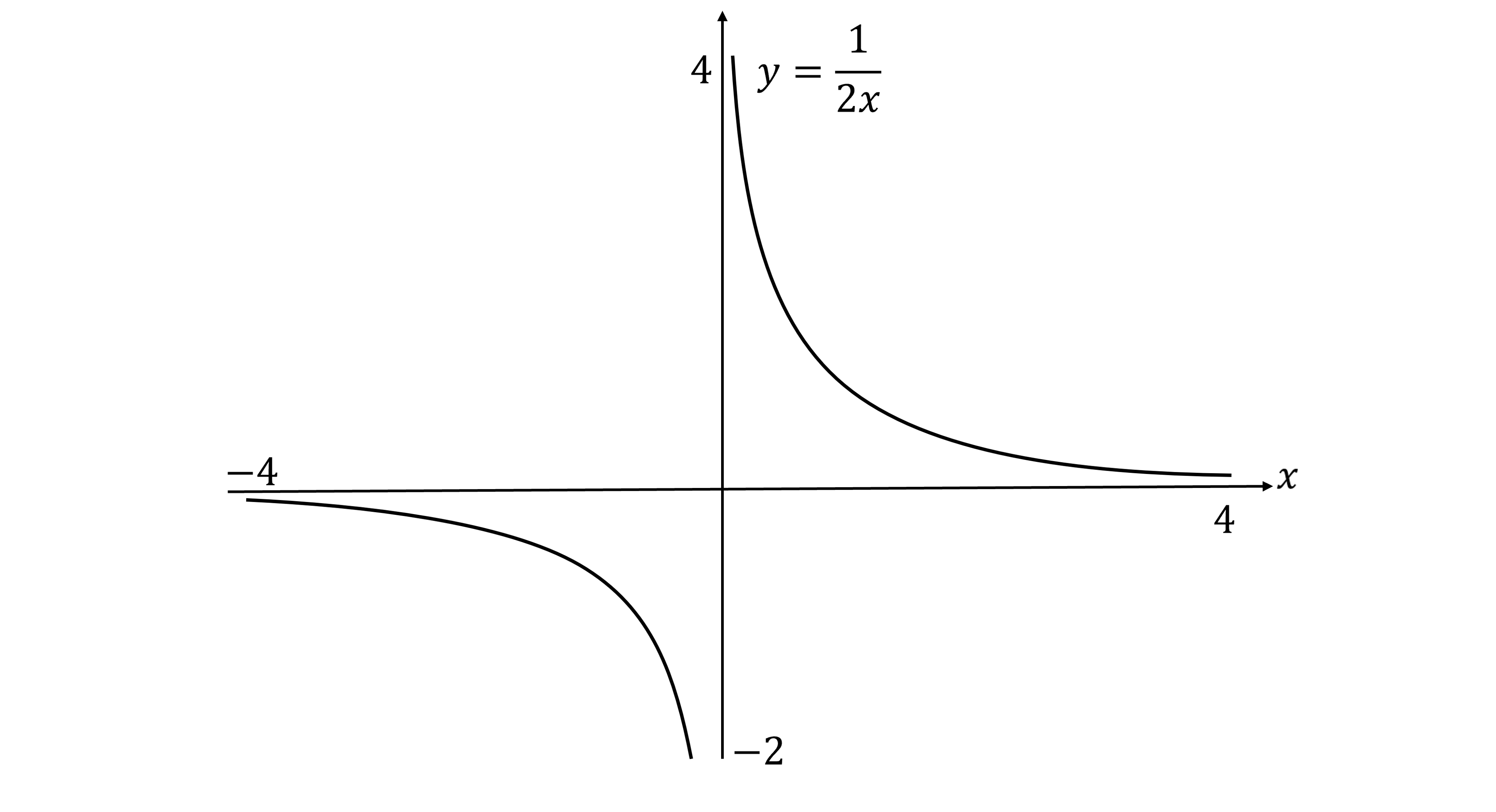

The graph of y equals fraction numerator 1 over denominator 2 x end fraction is shown below.

Graph of the function y = 1/(2x), showing two curved L-shaped branches in opposite quadrants (first and third quadrant), with x and y axes intersecting at the origin. Axes from -4 to 4 on x-axis and -2 to 4 on y-axis.

Write down the equations of any asymptotes.

How did you do?

4b5 marks

On the same diagram, sketch the graph of y equals 4 x squared minus x to the power of 4.

Label clearly the coordinates of any turning points and any intercepts with the coordinate axes.

How did you do?

4c3 marks

If x greater than 0, solve the following inequality.

4 x squared minus x to the power of 4 greater than fraction numerator 1 over denominator 2 x end fraction

Give your answer to 2 decimal places.

How did you do?
