Constant Acceleration (Cambridge (CIE) AS Maths: Mechanics): Exam Questions

Train A leaves a station from rest and moves along a straight track with constant acceleration. 35 seconds later, train B leaves the same station from rest and moves along a parallel track in the same direction with constant acceleration 1.4 ${\text{m s}}^{-2}$. Train B passes train A 85 seconds after train A leaves the station.

Find the distance each train has travelled when train B passes train A.

Find the acceleration of train A.

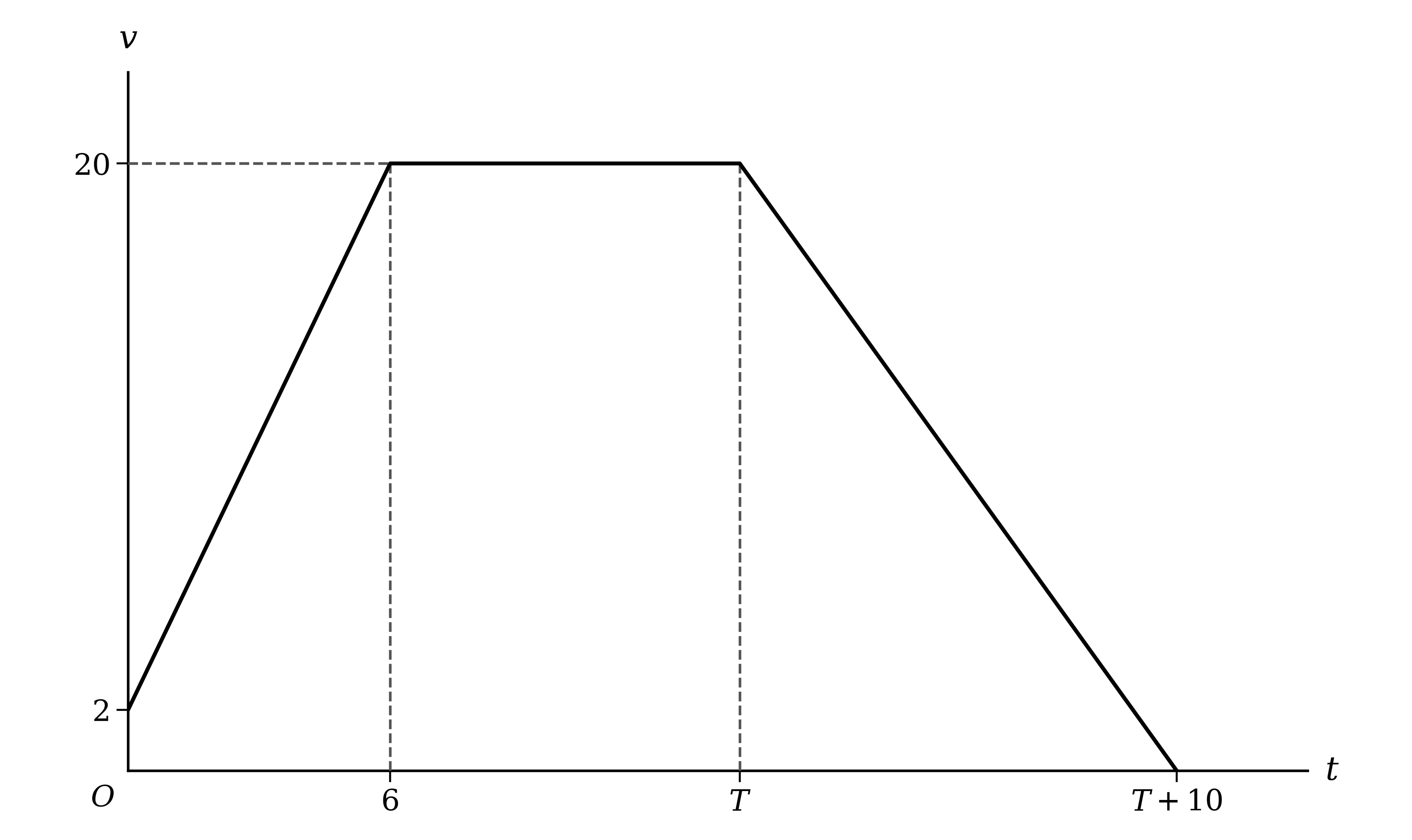

The diagram shows the velocity-time graph for a particle moving in a straight line. Velocity is measured in metres per second and time in seconds.

Find the acceleration of the particle during the first 6 seconds.

Find the displacement of the particle during the last 10 seconds of its motion.

The particle travels 280 m while its acceleration is zero.

Find the value of T.

A ball is projected vertically upwards from horizontal ground with speed 5.8 ${\text{m s}}^{-1}$.

Find the greatest height reached by the ball and the time taken to reach this height.

A train leaves station O from rest and moves along a straight track with constant acceleration 0.12 ${\text{m s}}^{-2}$. After 190 seconds the train passes a signal. The train then decelerates uniformly at 0.18 ${\text{m s}}^{-2}$ until it comes to rest at station X.

Find the distance OX.

A particle moves in a straight line with constant acceleration 1.5 ${\text{m s}}^{-2}$ and does not change its direction of motion. After travelling 52.44 m, the particle has velocity 12.6 ${\text{m s}}^{-1}$.

Find the time taken for the particle to travel this distance.

A car travels along a straight horizontal road. The car passes a point A with speed 21 ${\text{m s}}^{-1}$ and accelerates uniformly at 0.2 ${\text{m s}}^{-2}$ until it reaches a point B, where AB = 1.5 km. At B the car begins to decelerate uniformly at 3.1 ${\text{m s}}^{-2}$ until it comes to rest.

Find the distance the car travels while it is decelerating.

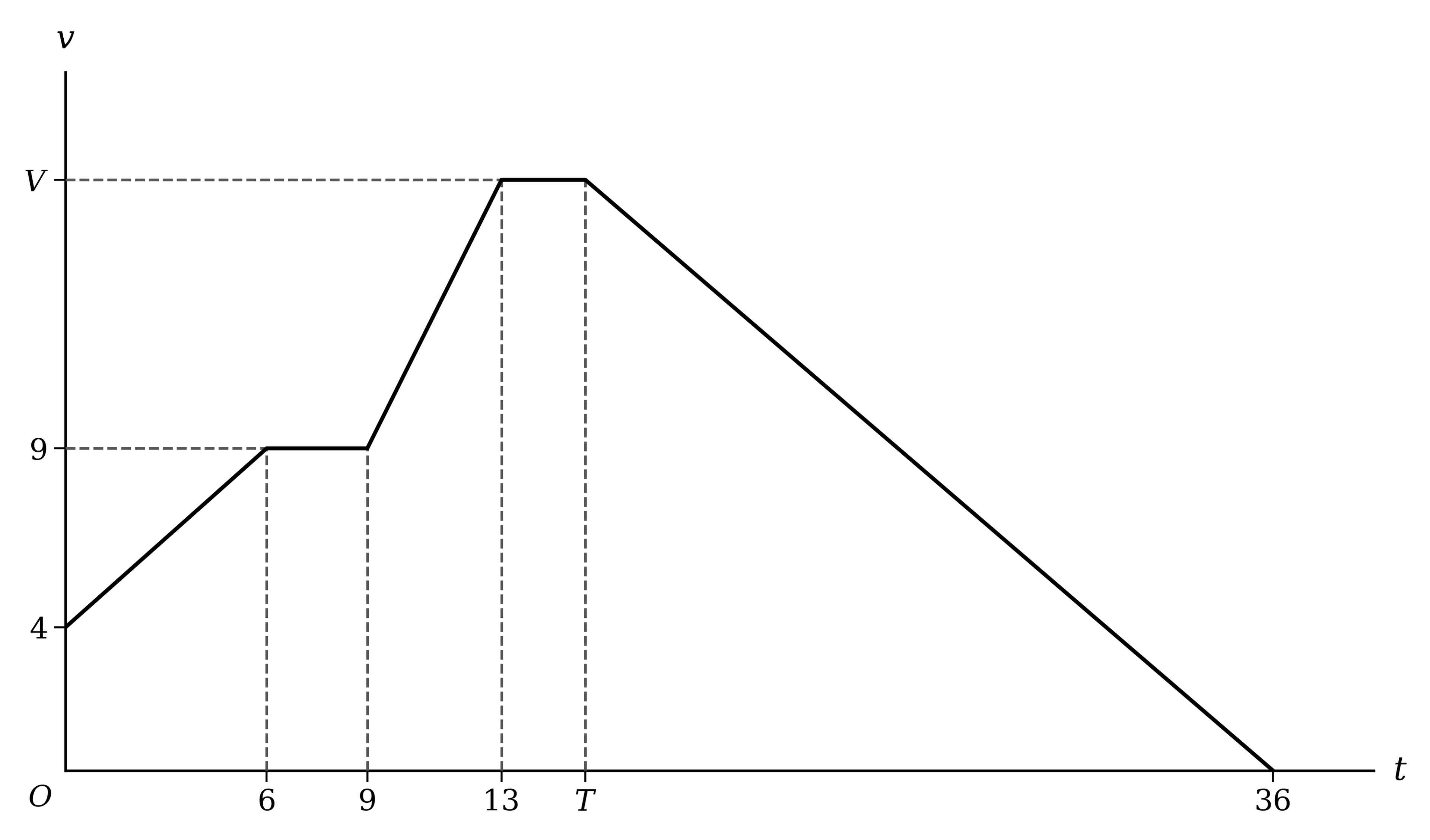

The diagram shows the velocity-time graph for a particle moving in a straight line. Velocity is measured in metres per second and time in seconds.

The particle travels 150 m from time T to time 36, and 309 m in total.

Find the values of T and V.

A train leaves station O from rest and moves along a straight track with constant acceleration 0.2 ${\text{m s}}^{-2}$. After 125 seconds the train passes a signal. The train then decelerates uniformly and comes to rest at station X 75 seconds later.

Find the distance OX.

The train then leaves X from rest and moves back along the same track, in the opposite direction, with constant acceleration 0.1 ${\text{m s}}^{-2}$. The train passes through O without stopping. 300 seconds after leaving X, the train passes a signal 850 m before station Y. The train then decelerates uniformly and comes to rest at Y.

Find the distance OY.

In a crash test, a car starts from rest and moves along a straight horizontal track with constant acceleration until it hits a wall. The length of track available is 0.8 km.

In one test the car has constant acceleration 1.6 ${\text{m s}}^{-2}$.

Find the greatest possible speed, in ${\text{km h}}^{-1}$, with which the car can hit the wall.

The acceleration used in a test is normally 1.2 ${\text{m s}}^{-2}$, but it can be increased or decreased by up to 40%.

Determine whether it is possible to crash test a car at a speed of 200 ${\text{km h}}^{-1}$.

A car travels along a straight horizontal road. The car passes a point A with speed 17.2 ${\text{m s}}^{-1}$ and accelerates uniformly at 0.4 ${\text{m s}}^{-2}$ until it reaches a point B, where AB = 0.8 km. At B the car begins to decelerate uniformly at 2.75 ${\text{m s}}^{-2}$ until it comes to rest.

Find the total time from the instant the car passes A to the instant it comes to rest. Give your answer correct to 1 decimal place.

Two stations, A and B, are 8.2 km apart on a straight track. A train leaves A from rest and moves towards B with constant acceleration 0.2 ${\text{m s}}^{-2}$. At the same instant, a second train leaves B from rest and moves towards A along a parallel track with constant acceleration 0.16 ${\text{m s}}^{-2}$. The trains are modelled as particles.

Find the distance from A at which the trains pass each other.

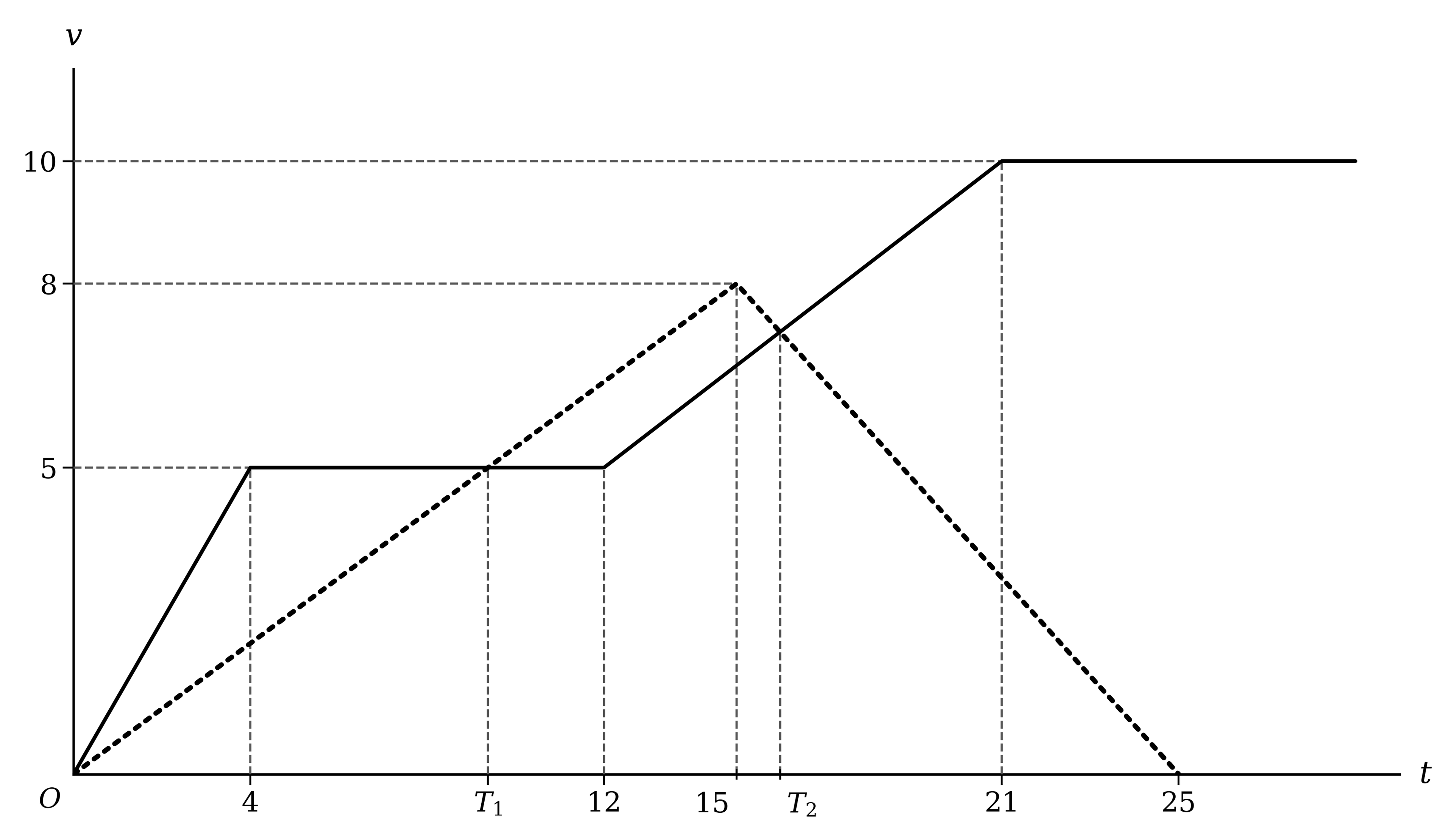

Two particles, A and B, move along parallel straight lines. The diagram shows the velocity-time graphs for their motion, with A shown by the solid line and B by the dotted line. Velocity is measured in metres per second and time in seconds.

The particles have equal velocities at times $T_1$ and $T_2$ seconds, where $4<T_1<12$ and $15<T_2<21$.

Find $T_1$ and $T_2$, giving your answers correct to 3 significant figures.

A particle is projected vertically upwards from horizontal ground with speed 35.6 ${\text{m s}}^{-1}$.

Find the length of time for which the particle is at least 15 m above the ground.

A train leaves a station from rest and moves along a straight track with constant acceleration 0.12 ${\text{m s}}^{-2}$. 40 seconds later, a second train leaves the same station from rest and moves along the same track in the same direction with constant acceleration 0.2 ${\text{m s}}^{-2}$.

Find the time after the second train leaves the station at which it catches up with the first train. Give your answer correct to 3 significant figures.

Find the distance, in kilometres, that each train has travelled when the second train catches up with the first. Give your answer correct to 3 significant figures.

A ball is projected vertically upwards from horizontal ground. The ball hits the ground 1.6 seconds after reaching its greatest height.

Find the greatest height reached by the ball and the speed of projection.

A firework is projected vertically upwards with speed 38.5 ${\text{m s}}^{-1}$ from the top of a building of height 135 m.

Find the length of time for which the firework is more than 150 m above the ground.

The firework explodes 2 seconds after reaching its greatest height.

Find the height above the ground at which the firework explodes.

Two trains leave station O from rest at the same instant and move in opposite directions along a straight track.

The first train moves with constant acceleration 0.15 ${\text{m s}}^{-2}$.

The second train moves with constant acceleration 0.24 ${\text{m s}}^{-2}$ for 210 seconds until it passes a signal. It then decelerates uniformly and comes to rest at station X 60 seconds later. After waiting at X for 2 minutes, the second train leaves X from rest and moves back towards O with constant acceleration 0.08 ${\text{m s}}^{-2}$.

Find the distance between the two trains 10 minutes after they leave O.

A ball is projected vertically upwards from horizontal ground with speed 29.3 ${\text{m s}}^{-1}$. At the same instant, a second ball is projected vertically downwards with speed 8.2 ${\text{m s}}^{-1}$ from a point 150 m directly above the first ball. The balls collide.

Find the time at which the balls collide and the height above the ground at which the collision occurs.

(i) Find the speed of each ball when they collide.

(ii) Show that both balls are moving downwards when they collide.
