Coordinates using Distance & Angle

How do I find a coordinate using a distance and angle?

  • You may be told a distance and an angle from a known coordinate to another unknown coordinate

    • In an exam question, the angles could be

      • written as bearings from north

      • labelled on a diagram

      • described relative to a given line e.g. to y equals 4 or to a line segment A B

  • Start by drawing a diagram, or annotating a given diagram

  • If the given angle is a multiple of 90 you can find the unknown coordinate just using addition or subtraction

    • Add or subtract the given distance from the x or y coordinate

    • Drawing a diagram will help you to spot how to find the unknown coordinate

  • The diagram below shows how to find the coordinates a distance of 5 from the point (1, 4) at angles 90°, 180°, 270°, and 360° (or 0°) from North

Coordinate grid with a central point at (1, 4) and four surrounding points: (1, 9), (6, 4), (-4, 4), and (1, -1), marked by crosses.

Worked Example

The point A has coordinates (2, 3).

The point P has coordinates (5, 3).

Point B is 5 units away from A at an angle of 270° measured anticlockwise from the line A P.

Determine the coordinates of B.

Answer:

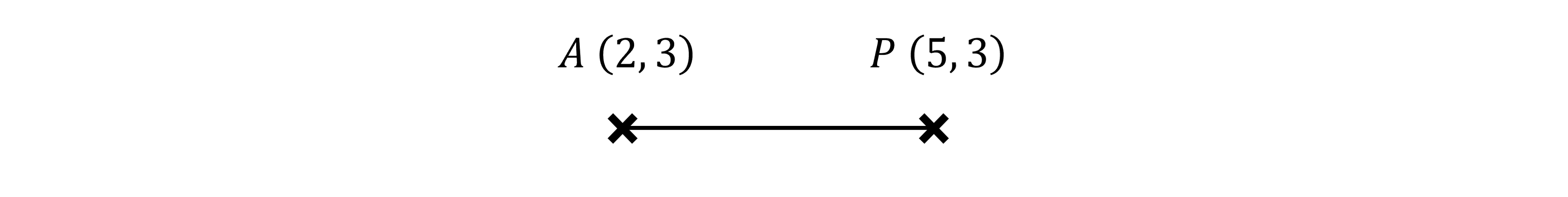

Draw a diagram showing the points A and P, noting that their relative positions

Join them to form the line A P

Line segment between points A (2, 3) and P (5, 3) with crosses at each end, indicating a horizontal line on a coordinate plane.

Point B is 270° (three-quarters of a full turn) from the line A P, measured anticlockwise

The distance along this direction is 5 units

Diagram with points A(2,3) and P(5,3), a 270° angle at A with an arc, line AB measures 5 units vertically, and AP is horizontal.

You can now spot that B is 5 units directly below A

Subtract 5 from the y coordinate of A

open parentheses 2 comma space 3 minus 5 close parentheses

B is (2, -2)
