Constructing Energy Cycles (Cambridge (CIE) A Level Chemistry): Revision Note

Energy Cycle Using Enthalpy Changes & Lattice Energy

• The standard enthalpy change of hydration (ΔH_hyd^θ) can be calculated by constructing energy cycles and applying Hess’s law

Example energy cycle

• The energy cycle shows that there are two routes to go from the ionic lattice to the hydrated ions in an aqueous solution:

  • Route 1: going from ionic solid → ions in aqueous solution (this is the direct route)

ΔH_sol^θ = enthalpy of solution

• Route 2: going from ionic lattice →  gaseous ions  →  ions in aqueous solution (this is the indirect route)

-ΔH_latt^θ + ΔH_hyd^θ = reverse lattice energy + hydration enthalpies of each ion

• Lattice energy is defined for forming the lattice from gaseous ions, in other words bond forming

  • If we are breaking the lattice then this is reversing the enthalpy change so a negative sign is added in front of the term (alternatively it is called lattice dissociation energy)

• According to Hess’s law, the enthalpy change for both routes is the same, such that:

ΔH_sol^θ = -ΔH_latt^θ + ΔH_hyd^θ

ΔH_hyd^θ = ΔH_sol^θ + ΔH_latt^θ

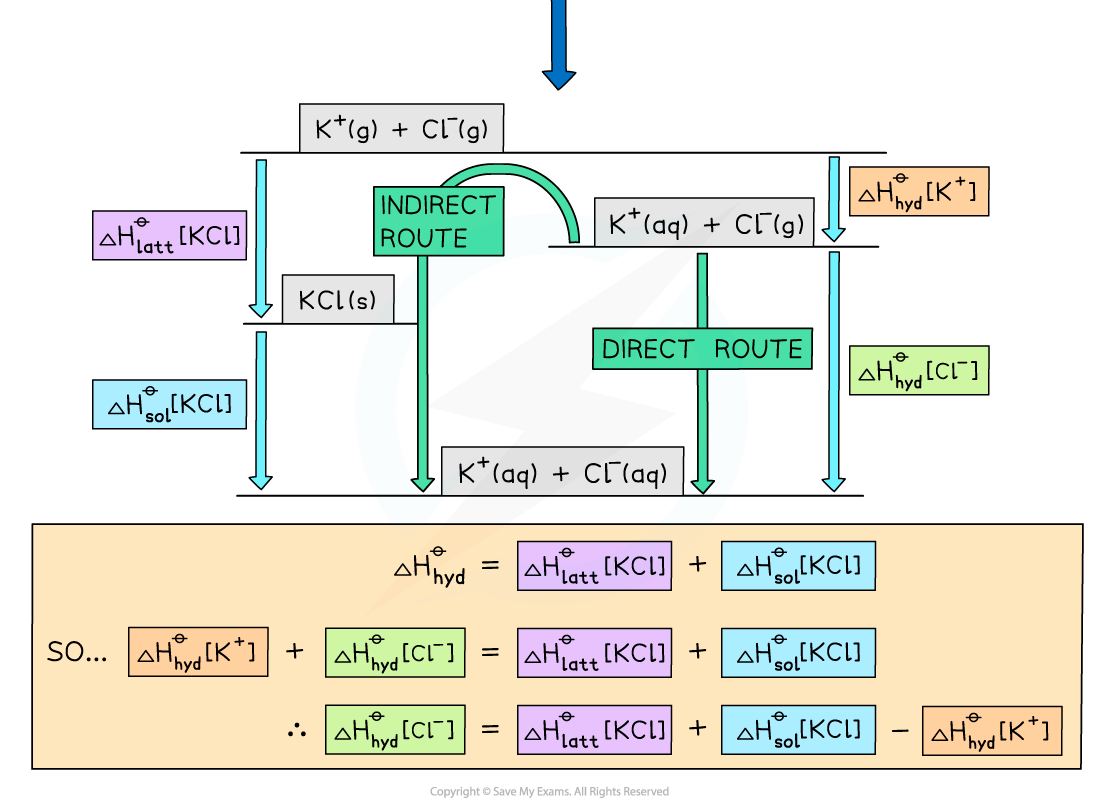

• Each ion will have its own enthalpy change of hydration, ΔH_hyd^θ, which will need to be taken into account during calculations

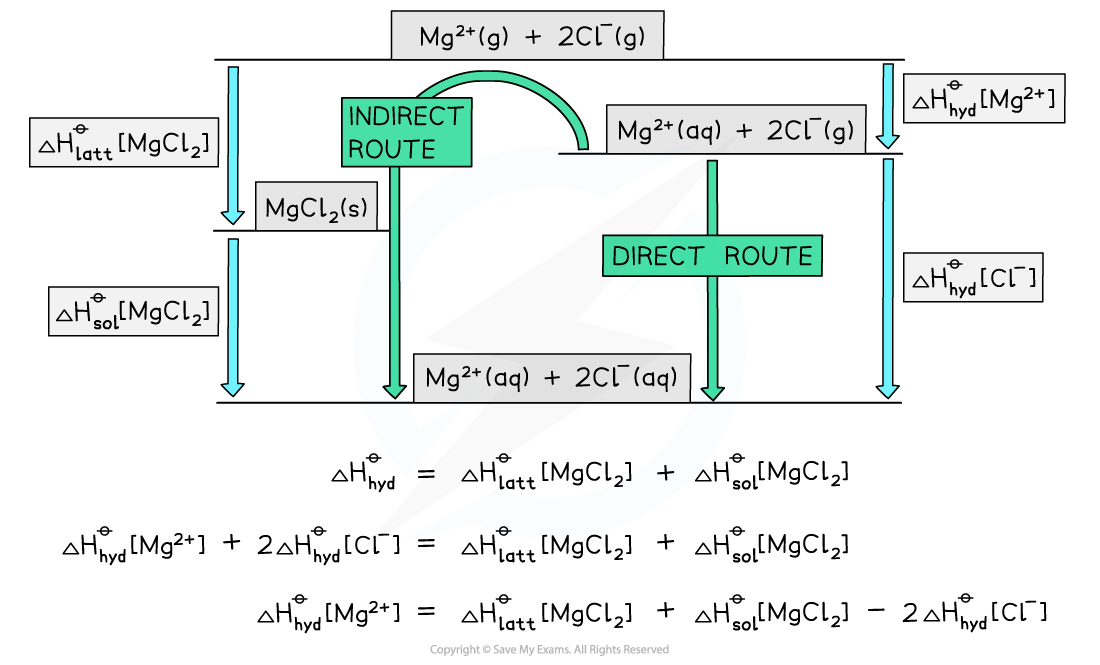

  • The total ΔH_hyd^θ is found by adding the  ΔH_hyd^θ values of both anions and cations together
