Calculate $PQ$.

$PQ$ = ........................................... cm

The diagram shows a rectangle 14cm by $w$cm.
The diagonal is 23 cm.

Calculate the value of $w$.

$w=.................................................$

The diagram shows a right-angled triangle.

Calculate the value of $x$.

$x$= ...................................................

The diagram shows a right-angled triangle $ABC$.
Calculate the length of $AB$.

$AB$ = ................................................m

The diagram shows a rectangular playground $ABCD$. $AB=23.4$m and $AC=35.1$m.

Calculate $BC$.

$BC=$ ............................ m [3]

The length of one side of a rectangle is 12cm.

The length of the diagonal of the rectangle is 13cm.

Calculate the area of the rectangle.

.......................................... cm²

Triangles $ABC$ and $BCD$ are both right-angled triangles.

Calculate the value of $y$.

$y=$................................

The diagram shows a field in the shape of a trapezium. $AB=150\mathrm{m},BC=90\mathrm{m}$ and $CD=120\mathrm{m}$.
Angle $ABC$ = angle $BCD$ = $90°$.

i) Show that $AD=95m$, correct to the nearest metre.

[3]

ii)A fence is built around the perimeter of the field.

It costs $\$48$ to build each 5-metre section of the fence. Calculate the cost of building this fence.

$\$$ .................................... [3]

Sam has a rectangular pond, $ABCD$.

i) Calculate $BC$.

$BC$ = ...............................m [3]

ii) He puts a fence around the edge of the pond.
Calculate the length of the fence.

................................m [1]

The diagram shows a right-angled triangle.

Calculate the perimeter.

............................................ cm [3]

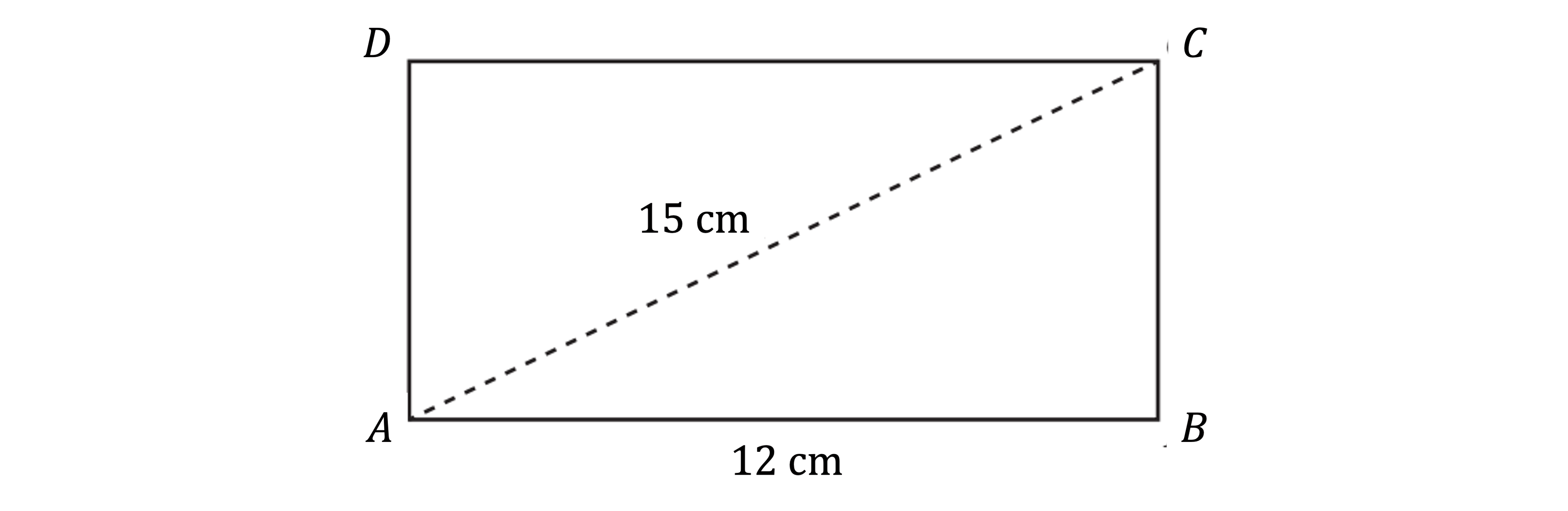

The diagram shows a rectangular piece of wood $ABCD$.

$AB=$ 12 cm and $AC=$ 15 cm.

Calculate $BC$.

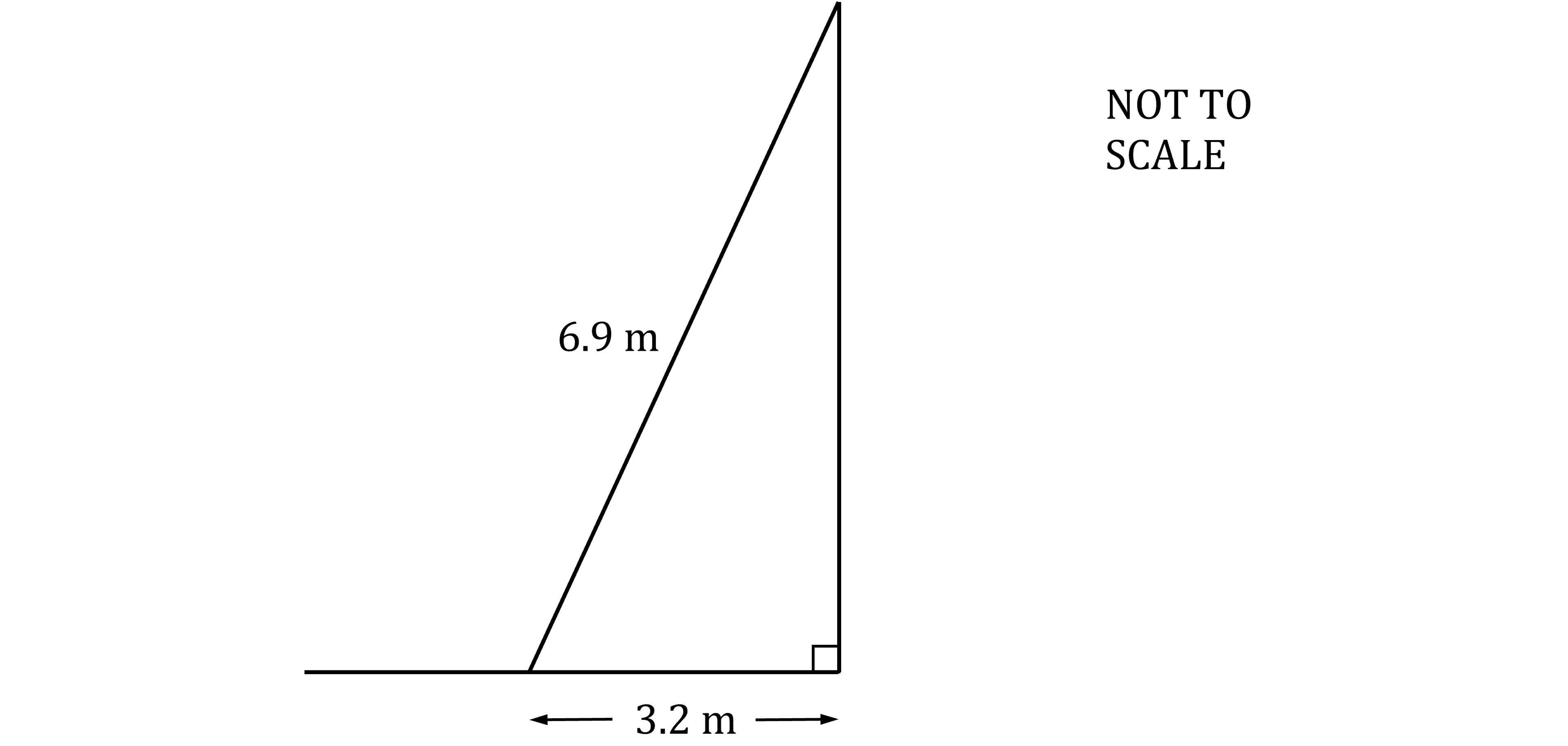

A vertical flagpole is set on horizontal ground.
A guy rope of length 6.9 metres is attached to the top of the flagpole, and is also fixed to the ground 3.2 metres from the bottom of the flagpole.

Calculate the height of the flagpole.

............................................ m
