Sinusoidal models

How can the period be determined from a context or data?

The period is
- the smallest interval of input values
- over which the output values complete one full cycle
  - and then begin to repeat
In practical terms, the period can be found by identifying the distance between consecutive maxima or consecutive minima
- E.g. if a sinusoidal function has maxima at $t = 5$ and $t = 17$
  - the period is $17 - 5 = 12$
The period can also be estimated from a table of values
- by looking for where the output values start cycling through the same pattern again
If the frequency is given (the number of complete cycles per unit)
- then remember that the period is its reciprocal
  - $period = \frac{1}{frequency}$
- E.g. if a quantity oscillates 4 times per second, the period is $\frac{1}{4}$ seconds

How can the amplitude and vertical shift be determined?

The maximum and minimum output values can be used to find both
- the amplitude
  - $amplitude = | a | = \frac{max - min}{2}$
- and the vertical shift
  - $vertical shift = d = \frac{max + min}{2}$

In a context-based question, the maximum and minimum are often stated directly
- or can be deduced from the given information
E.g. if a temperature ranges from $35 ° F$ to $85 ° F$
- then the amplitude is $|a| = \frac{85 - 35}{2} = 25$
- and the vertical shift is $d = \frac{35 + 85}{2} = 60$

How can the phase shift be determined?

Once the amplitude, vertical shift, and period are known, the phase shift can be estimated
- by comparing an actual known input-output pair
- to the values predicted by the model without any phase shift
In practice, the phase shift is determined by identifying where in the cycle the function starts
If a sine model is being used
- Identify the input value where the function first crosses the midline going upward
  - the phase shift equals that input value
- This works because the untransformed function $\sin θ$ crosses the midline going upward at $θ = 0$
If a cosine model is being used
- Identify the input value where the first maximum occurs
  - the phase shift equals that input value
- This works because the untransformed function $\cos θ$ has a maximum point at $θ = 0$
There can be more than one possible correct value for a phase shift
- Adding or subtracting $2 π$ to a phase shift determined by the methods above will give another valid phase shift value

Examiner Tips and Tricks

Remember that in a sinusoidal function of form $f (θ) = a \sin (b (θ + c)) + d$ or $g (θ) = a \cos (b (θ + c)) + d$ , the phase shift is equal to $- c$ (not $c$ ).

E.g. if a sine function first crosses the midline going upward at $θ = \frac{π}{3}$
- That is a shift of the basic sine function by $\frac{π}{3}$ to the right
- So $- c = \frac{π}{3} \Rightarrow c = - \frac{π}{3}$
- Therefore the function will be of the form $f (θ) = a \sin (b (θ - \frac{π}{3})) + d$

How can sinusoidal models be constructed using technology?

For a data set that appears to follow a sinusoidal pattern a sinusoidal regression can be performed using a graphing calculator
- This produces values for the parameters $a$ , $b$ , $c$ , and $d$ that best fit the data
- However be careful
  - Your calculator may give those values for a function in the form $a \sin (b x + c) + d$
  - I.e., not in 'factored form' like $a \sin (b (θ + c)) + d$
    - You can convert to factored form if necessary
Alternatively, the key values (amplitude, period, vertical shift) can be estimated from a graph or table
- and then used to build the model manually
Both approaches are valid on the exam
Sinusoidal regressions are especially useful when the data does not fall exactly on a sinusoidal curve

What is a contextual domain, and how does it affect the model?

Sinusoidal function models often have a contextual domain
- i.e. a restricted range of input values over which the model is meaningful
E.g. a model for daily temperature over a year might only be valid for $1 \leq t \leq 365$
- Or a model for the height of a point on a spinning wheel might only be valid for $t \geq 0$
Within the contextual domain, the model can be used
- to predict values of the dependent variable
- from values of the independent variable
The model can also be used in reverse
- i.e. given a value of the dependent variable
- the independent variable can be predicted
  - by solving the equation for the independent variable
- E.g. given a temperature model $T (t)$ , you could be asked to find at what time $t$ the temperature reaches a particular value

Outside the contextual domain, the model's predictions may not be meaningful
- even though the mathematical function continues to produce output values

How should the five key points on a sinusoidal graph be labeled?

On the exam, free response question 3 always presents
- a generic sinusoidal graph (without scale or axes)
- showing two full cycles
- with five labeled points (usually $F$ , $G$ , $J$ , $K$ , and $P$ )

Graph of a sine wave with three peaks and two troughs, labelled points F, G, J, K, P on lines; dashed and solid horizontal lines intersect the curve.

Students must assign coordinates $(t, h (t))$ to each point based on the context
The five points correspond to the key features of the sinusoidal graph
- $F$ and $P$ are two successive maxima
- $J$ is a minimum
- $G$ and $K$ are on the midline
  - $G$ while the function is decreasing, $K$ while it is increasing

To find the coordinates
- For $h (t)$ -coordinates (vertical)
  - Use the context to determine the maximum, minimum, and midline values
- For $t$ -coordinates (horizontal)
  - Use the period and the phase shift to determine the time at each key feature
  - Horizontally, the key points are all one quarter of the period apart
    - i.e. from max to midline is one quarter period
    - as are midline to min, min to midline, and midline to max

Examiner Tips and Tricks

For a question of this sort, the $h (t)$ -coordinates are generally easier to determine than the $t$ -coordinates. The chief reader reports consistently show that most students who earn the $h (t)$ -coordinate point go on to struggle more with the $t$ -coordinates.

Make sure you understand how the period relates to the spacing between key points.

The time between any two adjacent key points (max → midline → min → midline → max) is always one quarter of the period

Also note that the $t$ -coordinates do not have to start at $t = 0$ .

The context determines where the cycle begins, so pay close attention to what the context tells you about the starting conditions

Worked Example

A weight attached to a spring oscillates vertically. At time $t = 3$ seconds, the weight is at its highest point, 14 cm above the table. It then moves downward to its lowest point, 4 cm above the table, and returns to 14 cm above. One complete oscillation takes $10$ seconds.

The sinusoidal function $h$ models the height of the weight above the table, in cm, as a function of time $t$ , in seconds.

The graph of $h$ and its dashed midline for two full cycles is shown. Five points, $F$ , $G$ , $J$ , $K$ , and $P$ , are labeled on the graph. No scale is indicated, and no axes are presented.

Determine possible coordinates $(t, h (t))$ for the five points: $F$ , $G$ , $J$ , $K$ , and $P$ .

Answer:

First find the $h (t)$ -coordinates

From the context, the maximum height is 14 cm and the minimum height is 4 cm

This gives

$midline = \frac{14 + 4}{2} = 9$

Therefore

$F$ and $P$ (maxima) have $h (t) = 14$

$G$ and $K$ (midline) have $h (t) = 9$

$J$ (minimum) has $h (t) = 4$

Now find the $t$ -coordinates:

The period (time for one complete oscillation) is $10$ seconds

so the time between consecutive key points is

$\frac{10}{4} = 2.5$ seconds

The weight is at its highest point at $t = 3$ , which corresponds to $F$

Therefore

$F$ : $t = 3$ (maximum)

$G$ : $t = 3 + 2.5 = 5.5$ (midline, going down)

$J$ : $t = 5.5 + 2.5 = 8$ (minimum)

$K$ : $t = 8 + 2.5 = 10.5$ (midline, going up)

$P$ : $t = 10.5 + 2.5 = 13$ (next maximum)

So the five points are

$F (3, 14) G (5.5, 9) J (8, 4) K (10.5, 9) P (13, 14)$

Worked Example

The figure shows the graph of a sinusoidal function $f$ , along with a dashed line showing the midline of the function. The function $f$ can be written in the form $f (x) = a \sin (b (x + c)) + d$ , where $b > 0$ . What is the value of $b$ ?

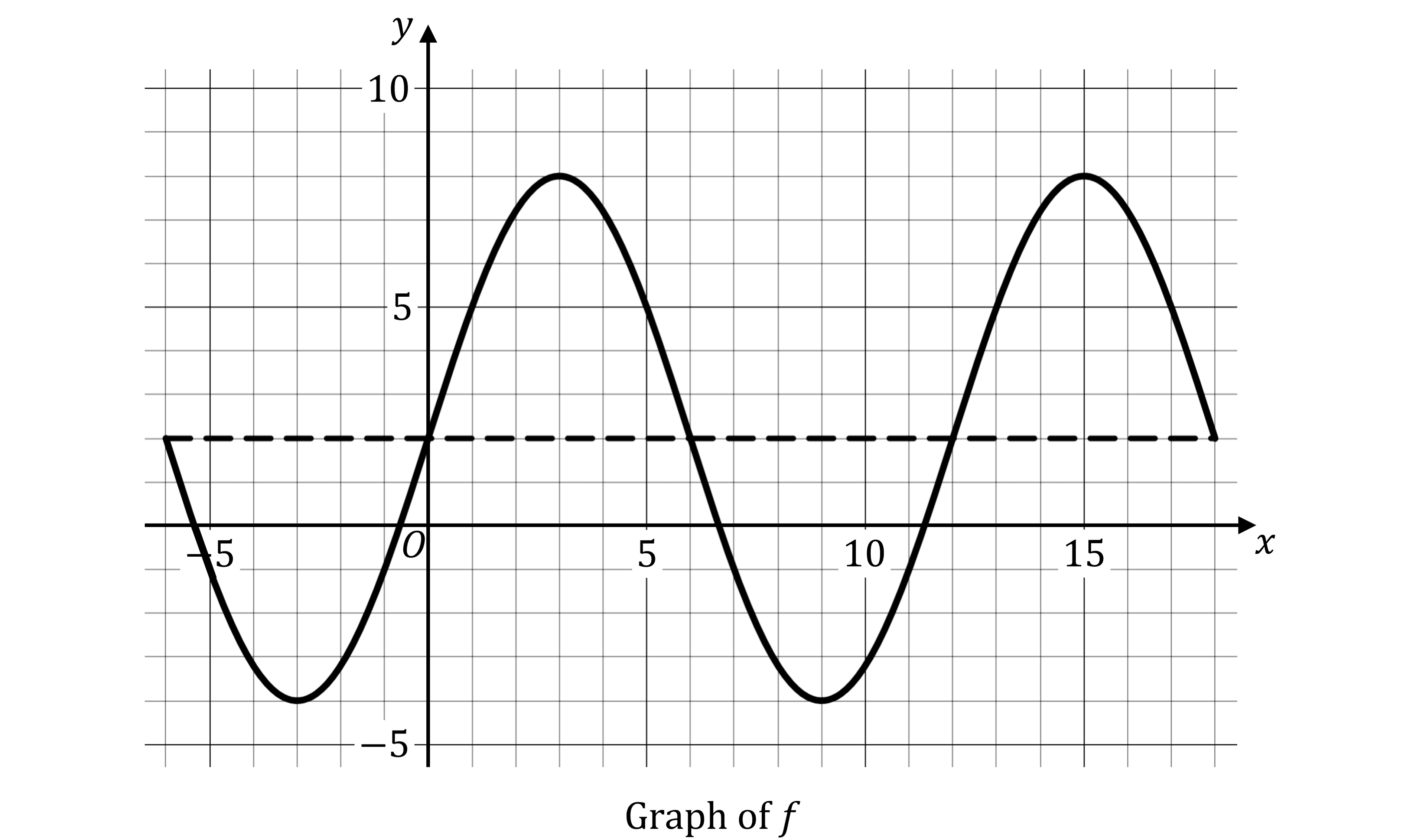

Graph of a sine wave with two peaks at (3,8) and (15,8), and two troughs at (-3, -4) and (9, -4) on a grid. The x and y axes marked. Dotted midline crosses the y-axis at 2.

(A) $\frac{π}{12}$

(B) $\frac{π}{6}$

(D) $12$

Answer

The value of $b$ is connected to the period of the function

The period can be determined from the distance between two consecutive maxima

and the maxima on the graph are at $(3, 8)$ and $(15, 8)$ , so

$period = 15 - 3 = 12$

Now use the relationship $period = \frac{2 π}{| b |}$ :

$\begin{array}{rcl} 12 & = & \frac{2 π}{|b|} \\ |b| & = & \frac{2 π}{12} \\ |b| & = & \frac{π}{6} \end{array}$

And you are told that $b > 0$ , so $b = \frac{π}{6}$

(B) $\frac{π}{6}$
